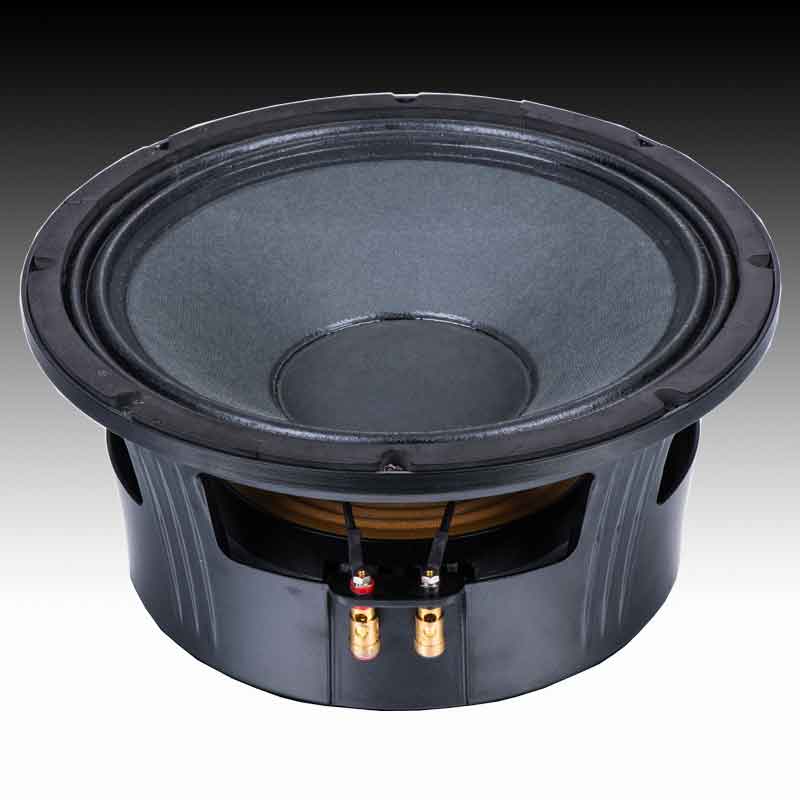

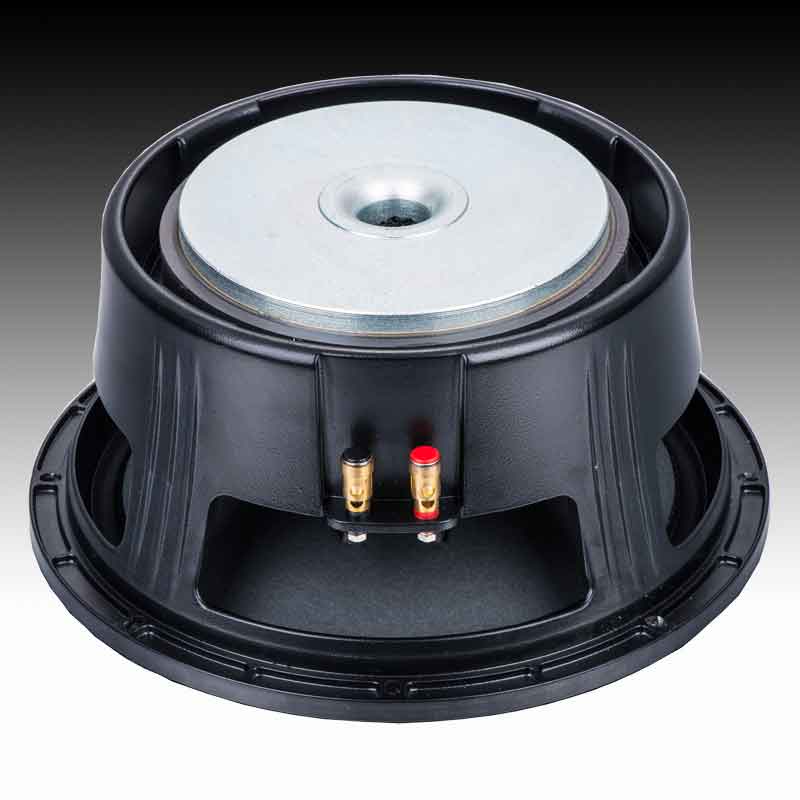

General  Specification 12BM300B
Norminal Diameter : 315mm/12inch
Power Rating : 350W
Norminal Impedance : 8Ohm
Sensitivity : 97dB
Frequency Range : 45Hz-4kHz
Chassis Type: Aluminium
Magnet Type: Ferrite Magnet
Magnet Weight : 80OZ  190*85*20mm
Voice Coil ; 3"/75mm
Coil Material CCAW
Former Material : Glass Fiber
Cone/Surround Material : Paper/Cloth
Suspension : Double Spider
X-mas: ±6.0mm
N/G  Weight 4.2kg/5.2kg
Dimension WxDxH 28*28*16CM
