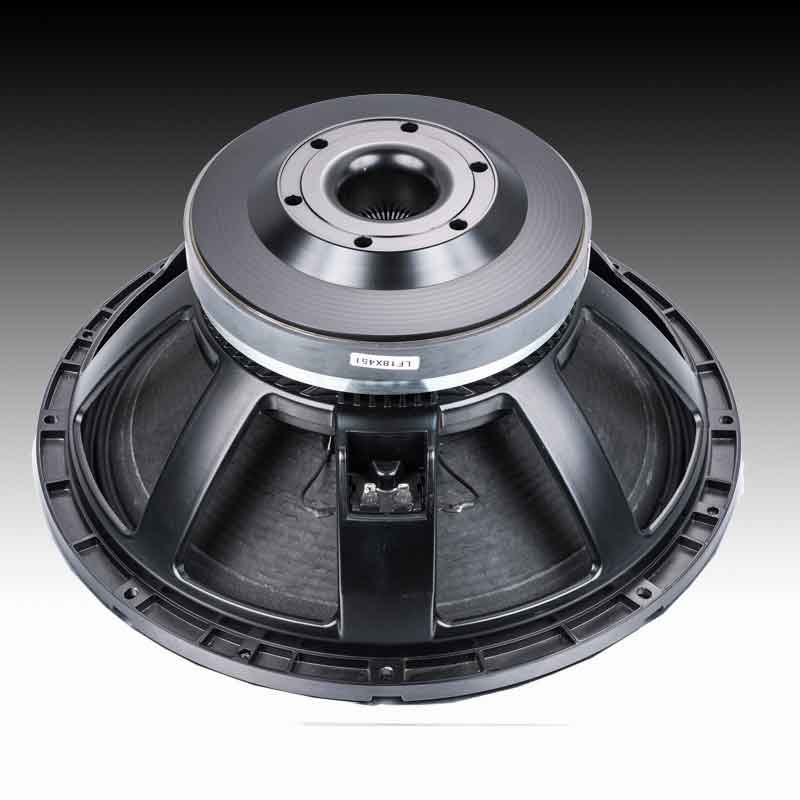

General  Specification LF18X451
Norminal Diameter : 465mm/18inch
Power Rating : 1800W
Norminal Impedance : 8Ohm
Sensitivity : 97dB
Frequency Range : 33Hz-2kHz
Chassis Type: Aluminium
Magnet Type: Ferrite Magnet
Magnet Weight : 150 OZ  250*140*25mm
Voice Coil ; 4.5"/115mm
Coil Material SV,Inside-out
Former Material : Glass Fiber
Voicecoil Winding Width: 34mm
Cone/Surround Material : Paper/Cloth
Suspension : Double Spider
X-mas: ±6.0mm
N/G  Weight 16/18kg
Dimension WxDxH 51x51x27cm

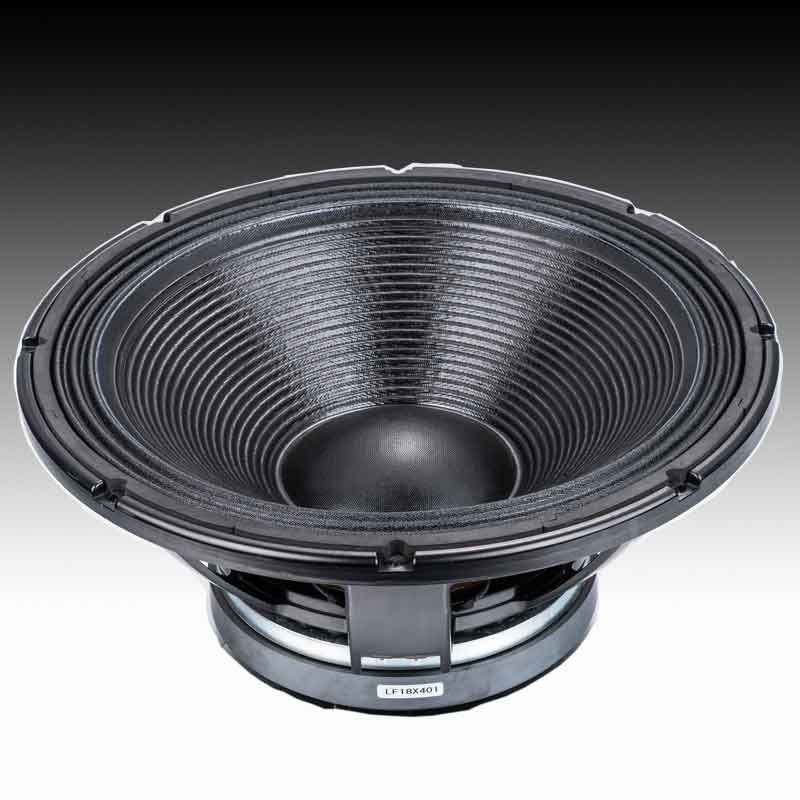

Pervious: LF15X400-B / LF18X400-B       Next: LF12X401/LF15X401/LF18X401
