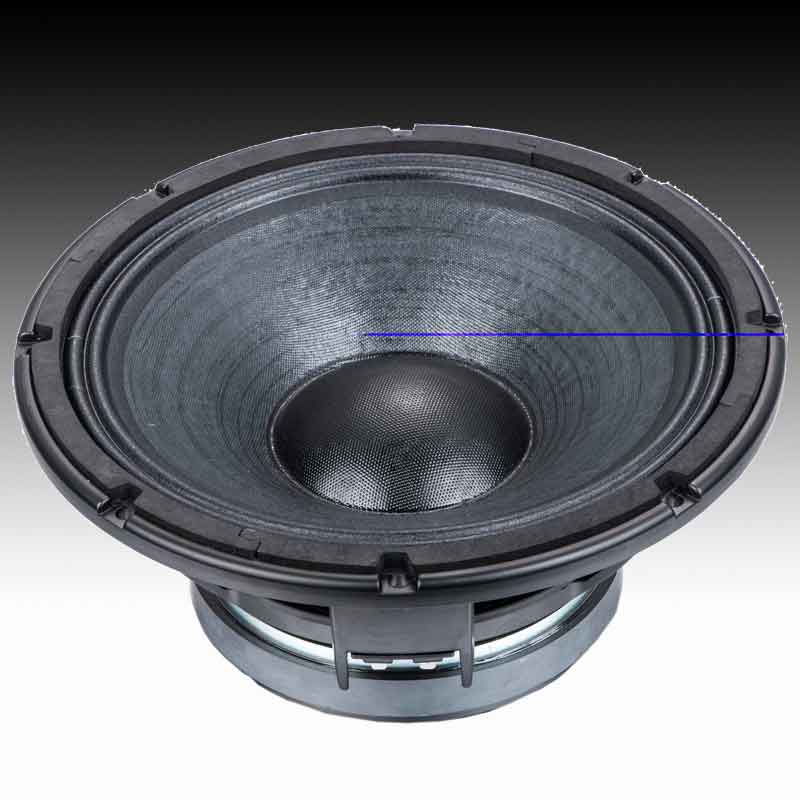

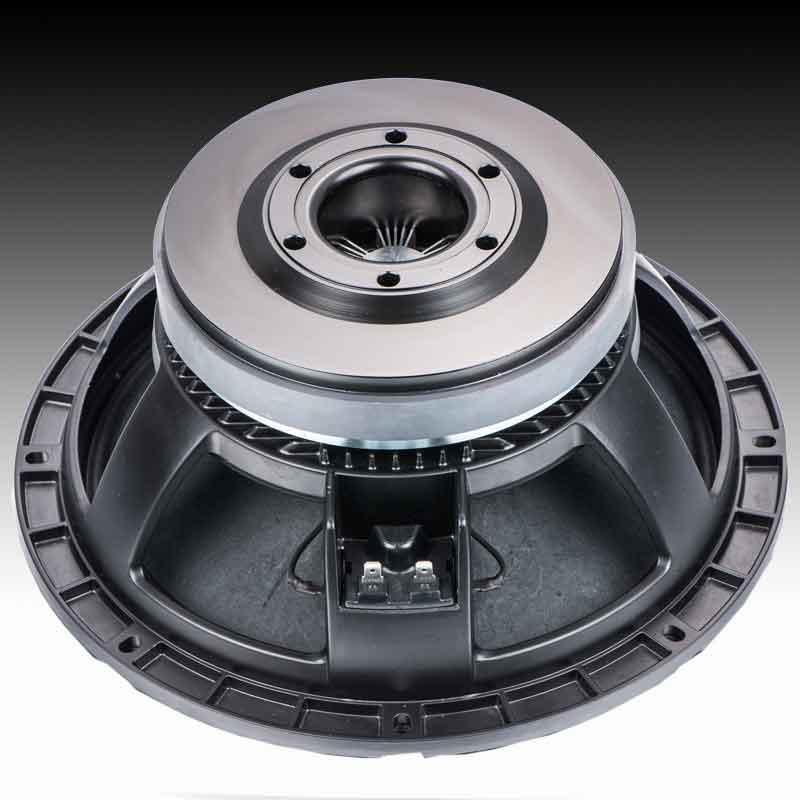

General  Specification MB12X301 MB15X301
Norminal Diameter : 315mm/12inch 394mm/15inch
Power Rating : 400W 400W
Norminal Impedance : 8Ohm 8Ohm
Sensitivity : 98dB 97dB
Frequency Range : 45Hz-4kHz 45Hz-4kHz
Chassis Type: Aluminium Aluminium
Magnet Type: Ferrite Magnet Ferrite Magnet
Magnet Weight : 78 OZ  190*90*20mm 78 OZ  190*90*20mm
Voice Coil ; 3"/75.8mm 3"/75.8mm
Coil Material SV,Inside-out SV,Inside-out
Voicecoil Winding Width: 18mm 18mm
Cone/Surround Material : Paper/Cloth Paper/Cloth
Suspension : Double Spider Double Spider
X-mas: ±6.0mm ±6.0mm
N/G  Weight 12kg/13kg 13/14kg
Dimension WxDxH 37*37*22Cm 44x44x25cm
