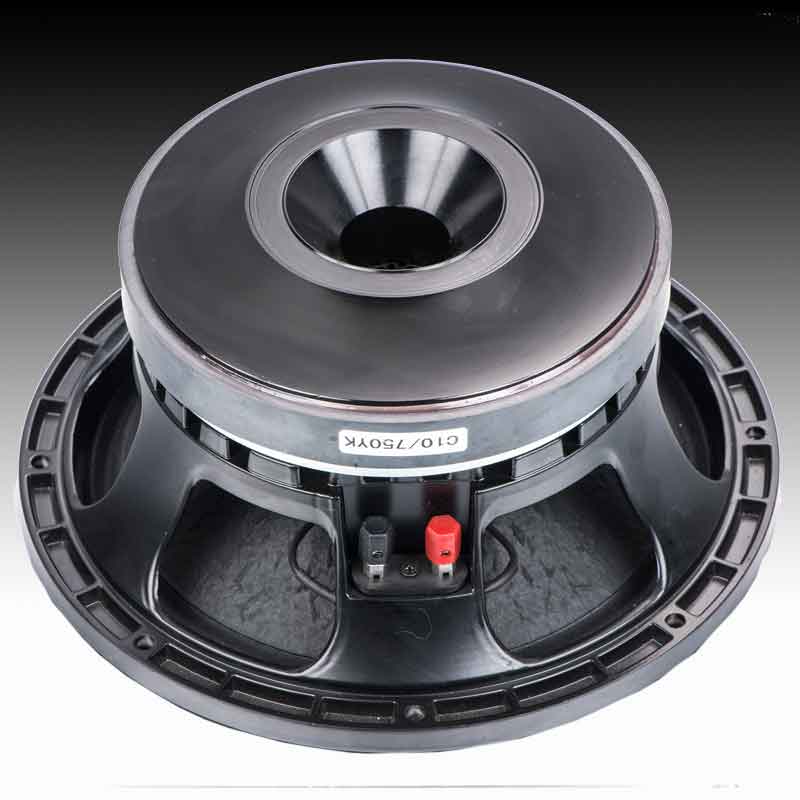

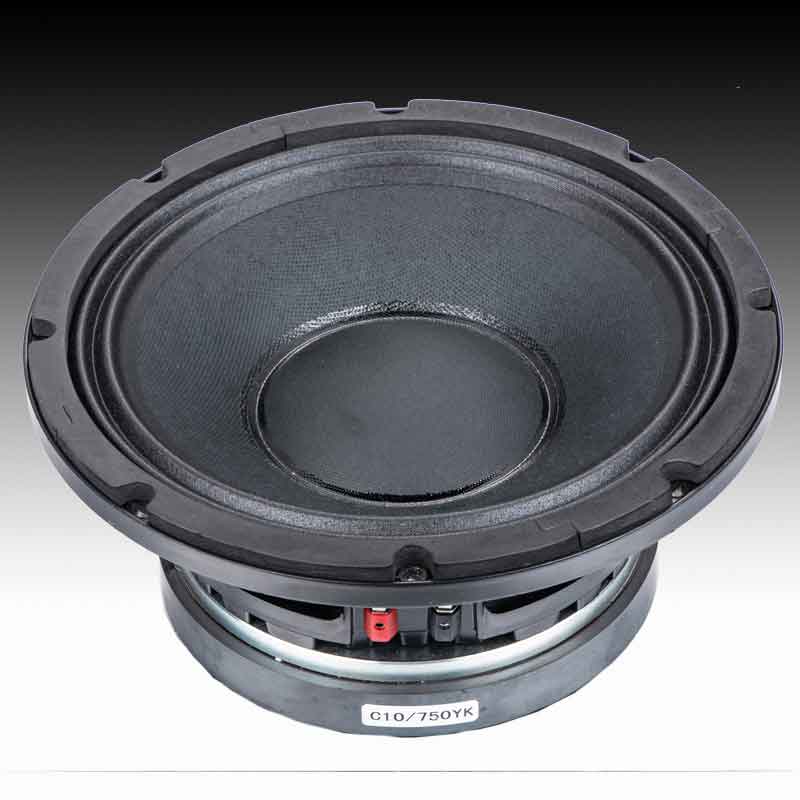

General  Specification C10/750YK
Norminal Diameter : 315mm/12inch
Power Rating : 300W
Norminal Impedance : 8Ohm
Sensitivity : 98dB
Frequency Range : 70Hz-4kHz
Chassis Type: Aluminium
Magnet Type: Ferrite Magnet
Magnet Weight : 78 OZ  190*90*20
Voice Coil ; 3"/75.8mm
Coil Material CCAW,Inside-out
Voicecoil Winding Width: 11mm
Cone/Surround Material : Paper/Cloth
Suspension : Double Spider
X-mas: ±6.0mm
N/G  Weight 13kg/14kg
Dimension WxDxH 37*37*22Cm
