General  Specification 15PS76-C 18PS76-C

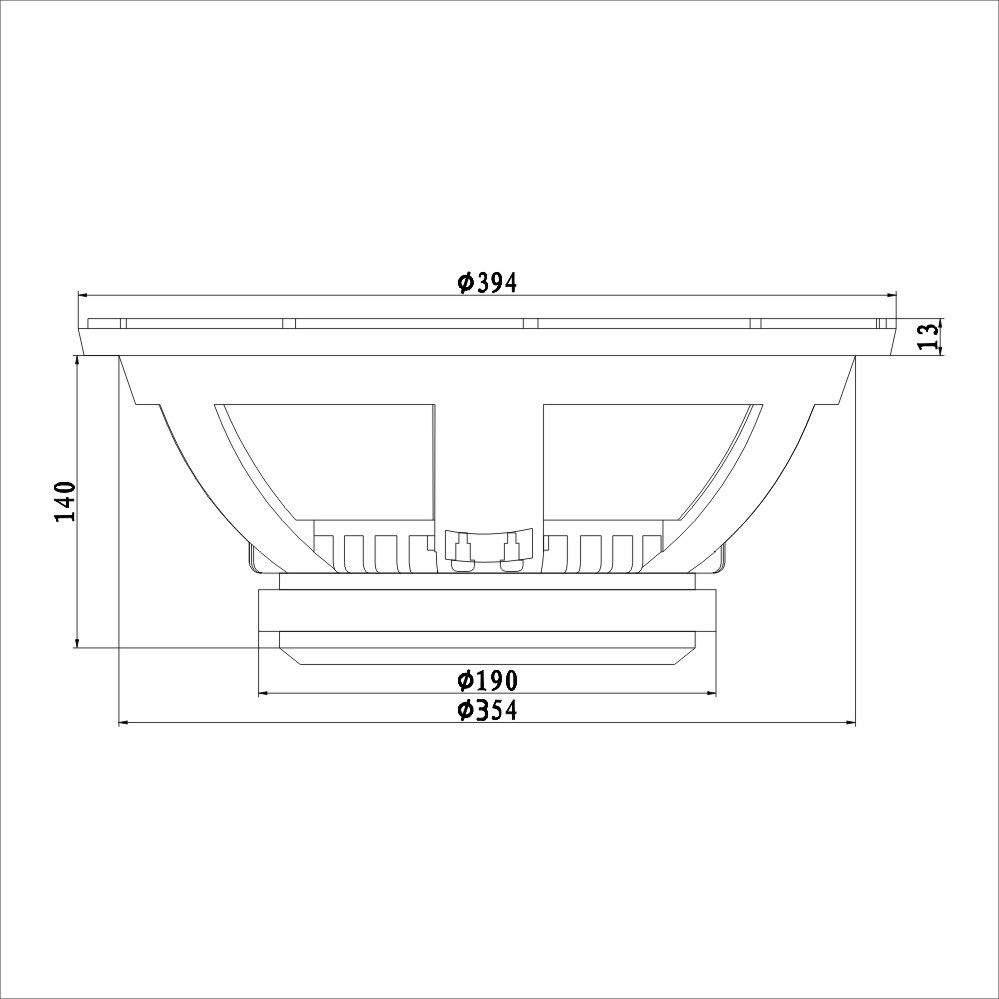

Norminal Diameter :    394mm/15inch 460mm/18inch
Power Rating :        400W 600W
Norminal Impedance :  8Ohm 8Ohm
Sensitivity :      97.6dB 98dB
Frequency Range :    38Hz-4kHz 40Hz-3.5kHz
Chassis Type: Aluminium Aluminium
Magnet Type:    Ferrite Magnet Ferrite Magnet
Magnet Weight :     190x90x20mm/78OZ 190x90x20mm/78OZ
Voice Coil ;    3"/75.8mm 3"/75.8mm
Coil Material    CCAW CCAW
Former Material :    Glass Fiber Glass Fiber
Voicecoil Winding Width:    18mm 21mm
Cone/Surround Material :     Paper/Cloth Paper/Cloth
Suspension :   Single Spider Single Spider
X-mas:     ±4.0mm ±6.0mm
N/G  Weight  8/9kg 11.2/12.2kg
Dimension WxDxH 44x44x25cm 51x51x27cm
Thiele & Small Parameters
Re  5.3Ohm 5.3Ohm
Fs 38Hz 40Hz
Mms 69.84g 149g
Mmd 55.46 136
Qms 9.36 6.1
Qes 0.38 0.33
Qts 0.37 0.29
Vas 251lt 207 lt
BL 15.2 Tm 25.8 Tm
SD 0.085m2 0.121m2
Features
  800 Watts  Max Power Handling 1200 Watts  Max Power Handling
  Ferrite Magnet Ferrite Magnet
  Single Spider Suspension Single Spider Suspension
  Die Cast Aluminium Chassis Die Cast Aluminium Chassis
