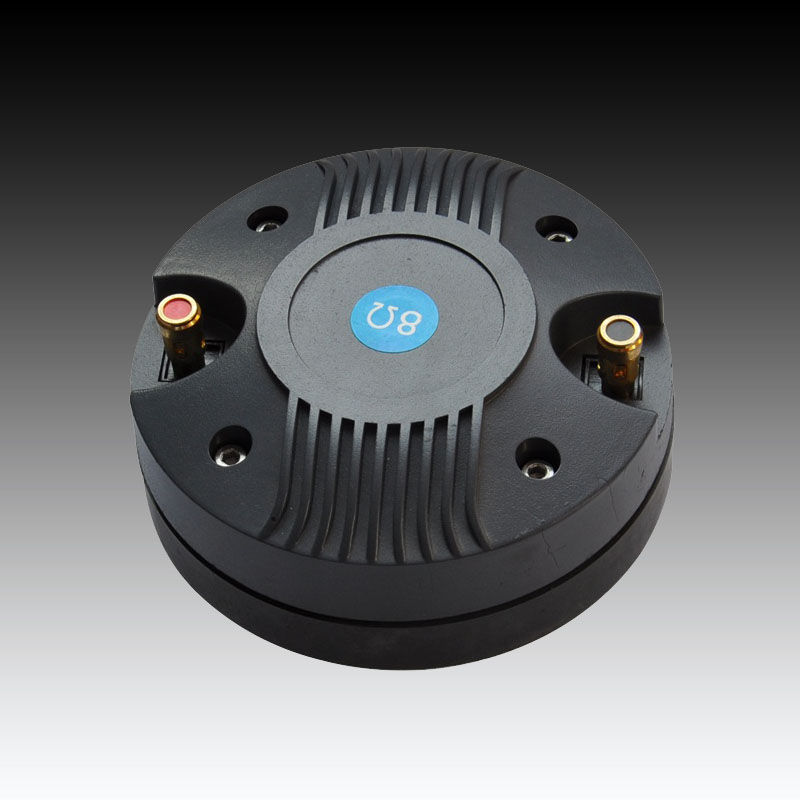

SPECIFICATION HF34G HF44G
Nominal impedance 8ohm(AC) 8ohm(AC)
Power capacity 35W 60W
Frequency Range 600Hz-20kHz 600Hz-20kHz
Sensitivity 110db/m.w 110db/m.w
Diaphragm material Titanium Titanium
Voice coil Kapton34.4mm(1.36") Kapton44.4mm(1.75")
Magnet 13oz 23oz
Throat 25mm(1") 25mm(1")
Outer carton 30*20*17cm 37*25*10cm
Pcs/carton 12pcs 6pcs
G.W/N.W 12.2/11.2kg 11.3/10.3kg


SPECIFICATION HF51G HF72G
Nominal impedance 8ohm(AC) 8ohm(AC)
Power capacity 80W 110W
Frequency Range 600Hz-20kHz 500Hz-20kHz
Sensitivity 110db/m.w 100db/m.w
Diaphragm material Titanium Titanium
Voice coil Kapton51.3mm(2.02") Kapton72.5mm(2.85")
Magnet 35oz 62oz
Throat 25mm(1") 50mm(2")
Outer carton 30*16*19cm 39*19*17cm
Pcs/carton 4pcs 4pcs
G.W/N.W 11.2/10.2kg 19.2/18.2kg
