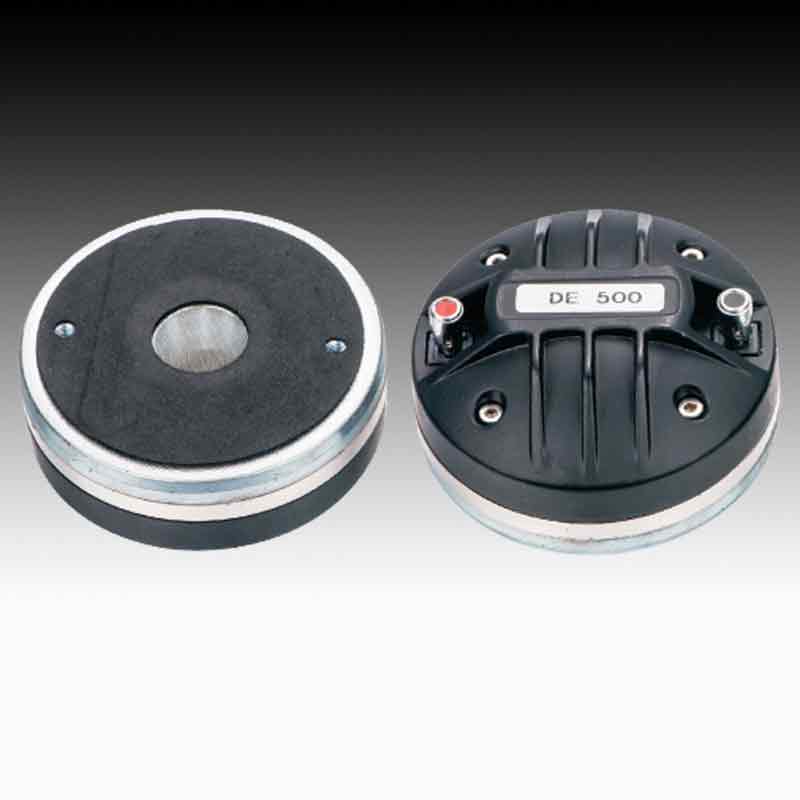

Model Number :DE400 Model Number :DE500
SPECIFICATION: SPECIFICATION:
Nominal impedance 8 ohm(AC) Nominal impedance 8 ohm(AC)
Power capacity 50W Power capacity 50W
Frequency Range 600Hz-20kHz Frequency Range 600Hz-20kHz
Sensitvity 106db/m.w Sensitvity 107db/m.w
Diaphragm material PEN Diaphragm material Titanium
Voice coil KCCAR44.4mm(1.75") Voice coil KCCAR44.4mm(1.75")
Magnet 85*56*5MM Magnet 102*60*7MM
Throat 25mm(1") Throat 25mm(1")
Size Size
Outer carton 23*23*16cm Outer carton 25*25*16cm
Pcs/carton 8pcs Pcs/carton 8pcs
G.W/N.W 7.7/6.7kg G.W/N.W 8.7/7.7kg

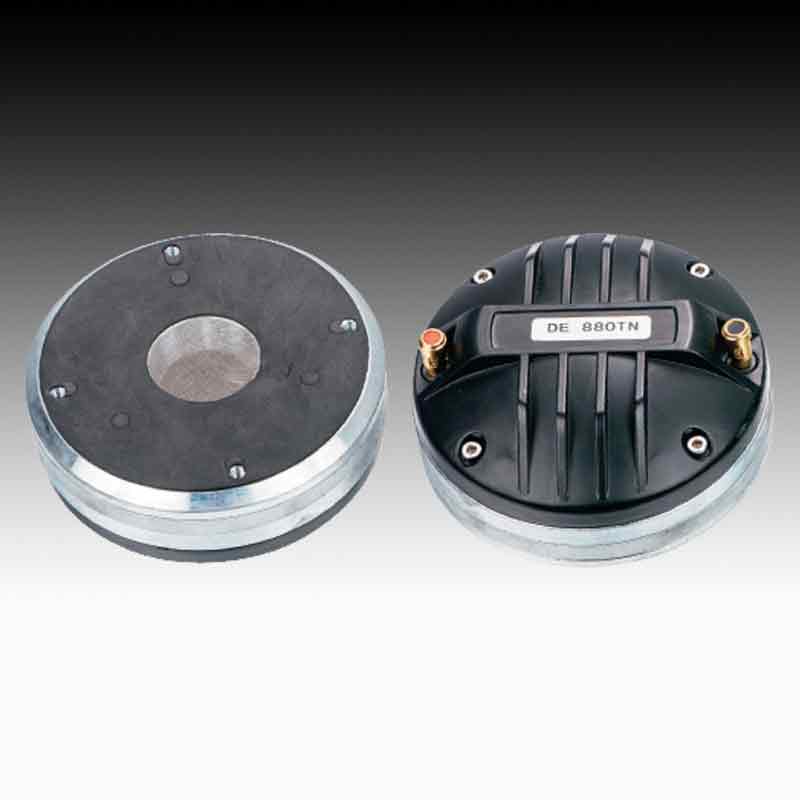

Model Number :DE880TN
SPECIFICATION:
Nominal impedance 8 ohm(AC)
Power capacity 110W
Frequency Range 600Hz-20kHz
Sensitvity 108db/m.w
Diaphragm material Titanium +PEEK
Voice coil KCCAR75  (3")
Magnet 124*80*8MM
Throat 36mm(1.4")
Size
Outer carton 30*30*18CM
Pcs/carton 4pcs
G.W/N.W 11/10kg
