Your Location: Home > Professional Loudspeaker > Plastic speaker > MF SERIESProducts


Model Number
8 inch MF8P MF8A MF8USB MF8UBF
10 inch MF10P MF10A MF10USB MF10UBF
12 inch MF12P MF12A MF12USB MF12UBF
15 inch MF15P MF15A MF15USB MF15UBF
Passive Active Amp w/USB+SD Amp w/ USB+SD +Bluetooth+FM

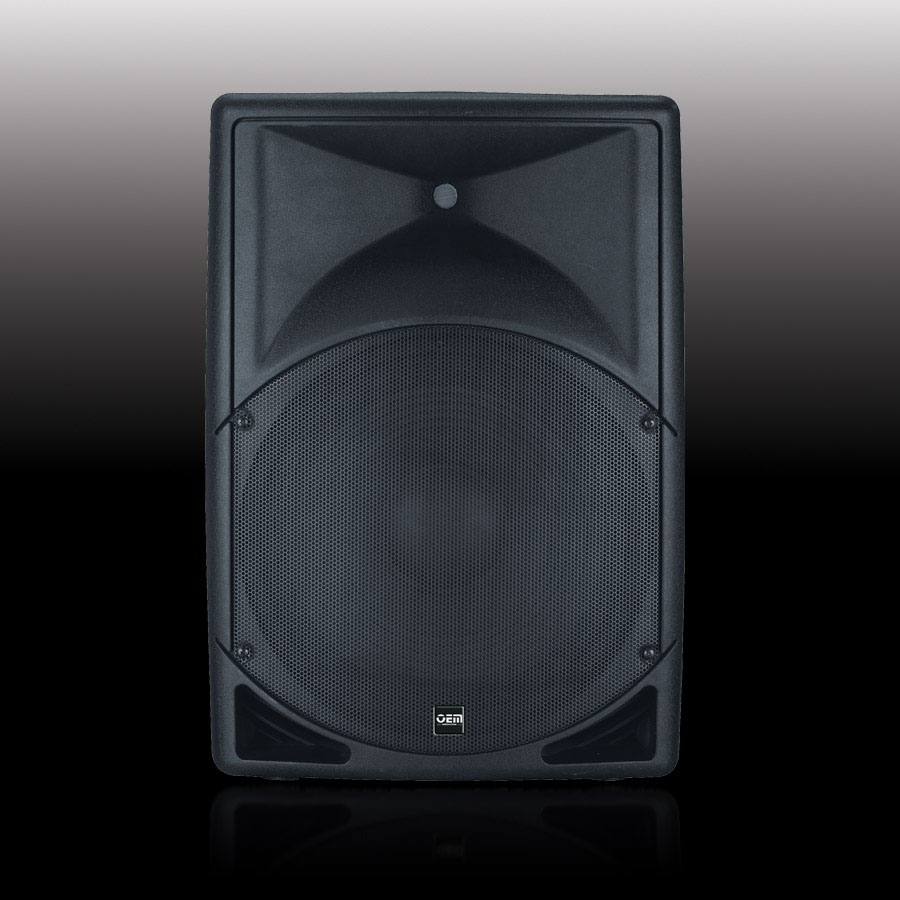

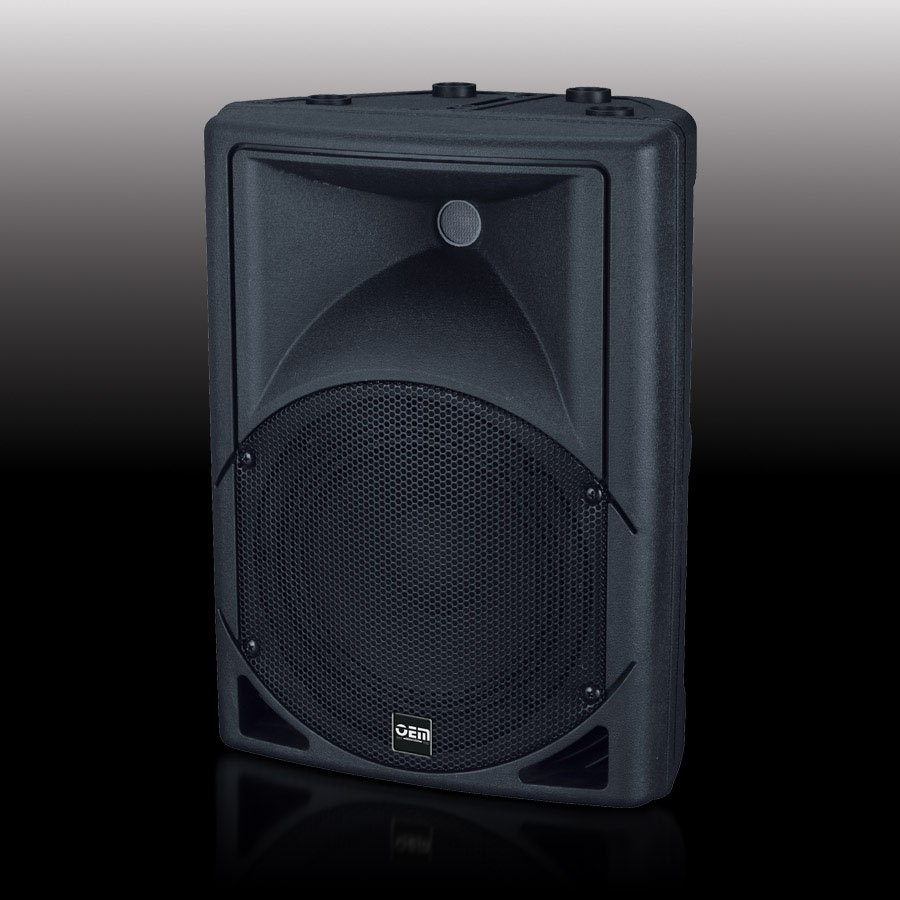

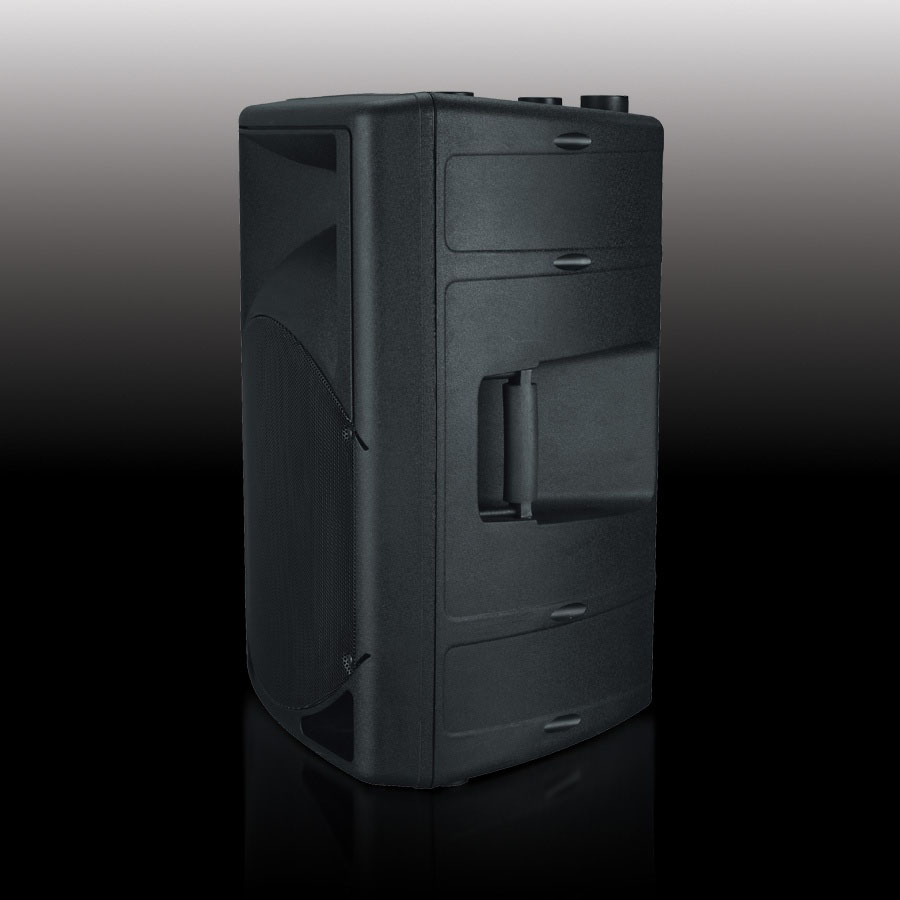

MF Series
Model 8 inch 10inch 12inch 15inch
RMS 150W 200W 250W 300W
Woofer
Impedance 4 Ohms 4Ohms 4Ohms 4Ohms
Sensitivity 93dB 94dB 95dB 97dB
Frequency Range 75-5500K 70-5000K 60-4500K 50-4000K
Coil Diameter 1.5 " 2 " 2.5" 3"
Magnet 30OZ 40OZ 50OZ 60OZ
Tweeter
Impedance 8Ohms 8Ohms 8Ohms 8Ohms
Sensitivity 94dB 95dB 97dB 98dB
Frequency Range 1200-20Khz 1000-20Khz 800-20Khz 800-20Khz
Coil Diameter 1" Titanium 1" Titanium 1.35" Titanium 1.75" Titanium
Magnet 8Oz 8Oz 13Oz 23OZ



Pervious: ME SERIES       Next: MG SERIES
