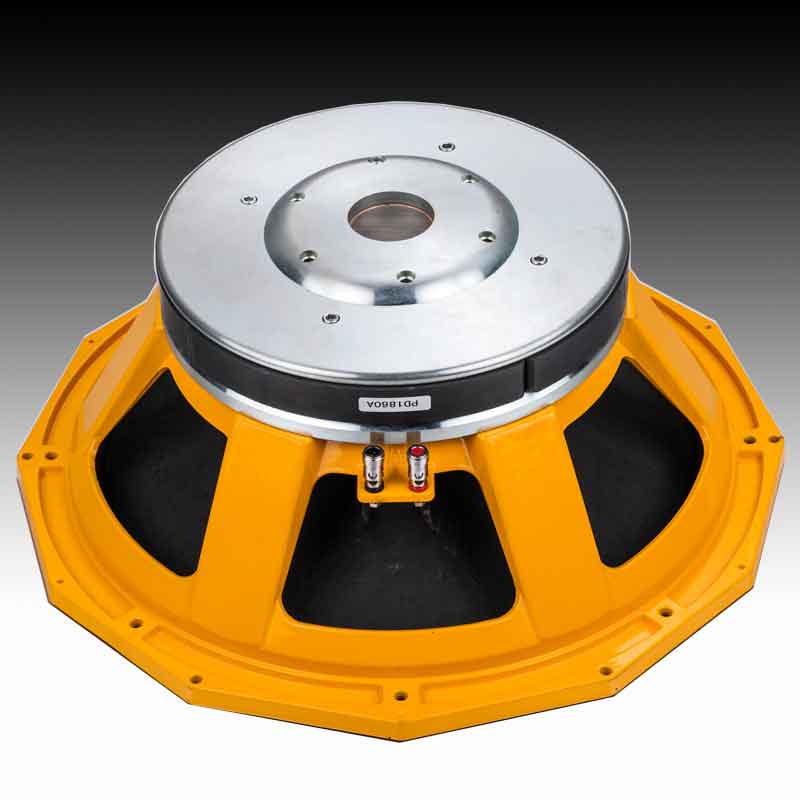

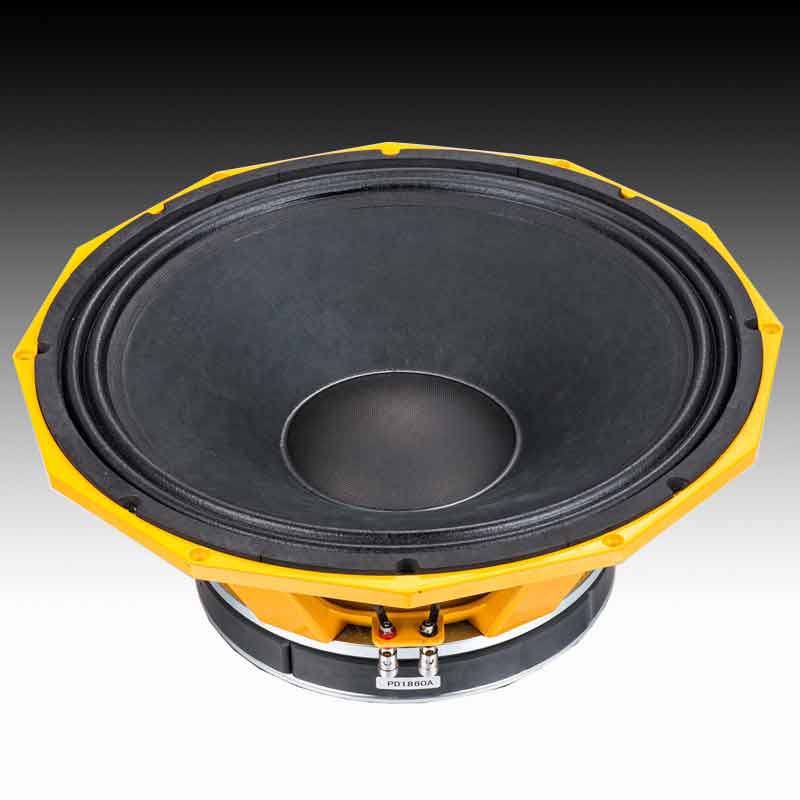

General  Specification PD1860A PD2160
Norminal Diameter : 465mm/18inch 540mm/21inch
Power Rating : 1500W 1800W
Norminal Impedance : 8Ohm 8Ohm
Sensitivity : 97dB 96dB
Frequency Range : 40HZ-3KHZ 40HZ-3KHZ
Chassis Type: Aluminium Aluminium
Magnet Type: Ferrite Magnet Ferrite Magnet
Magnet Weight : 200OZ 280*140*25 280 OZ 330*170*25
Voice Coil ; 5"/130MM 5"/130MM
Coil Material SV,Inside-out SV,Inside-out
Voicecoil Winding Width: 25mm 34mm
Cone/Surround Material : Paper/Cloth Paper/Cloth
Suspension : Double Spider Double Spider
X-mas: ±6.0mm ±6.0mm
N/G  Weight 16/18kg 30.6/34.6kg
Dimension WxDxH 51x51x27cm 60x60x30cm
