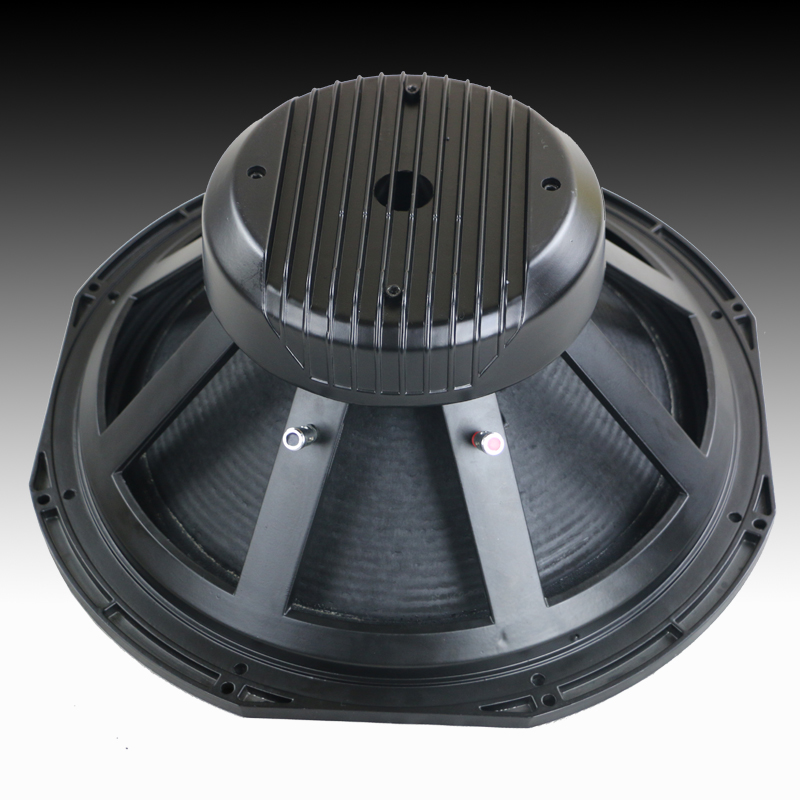

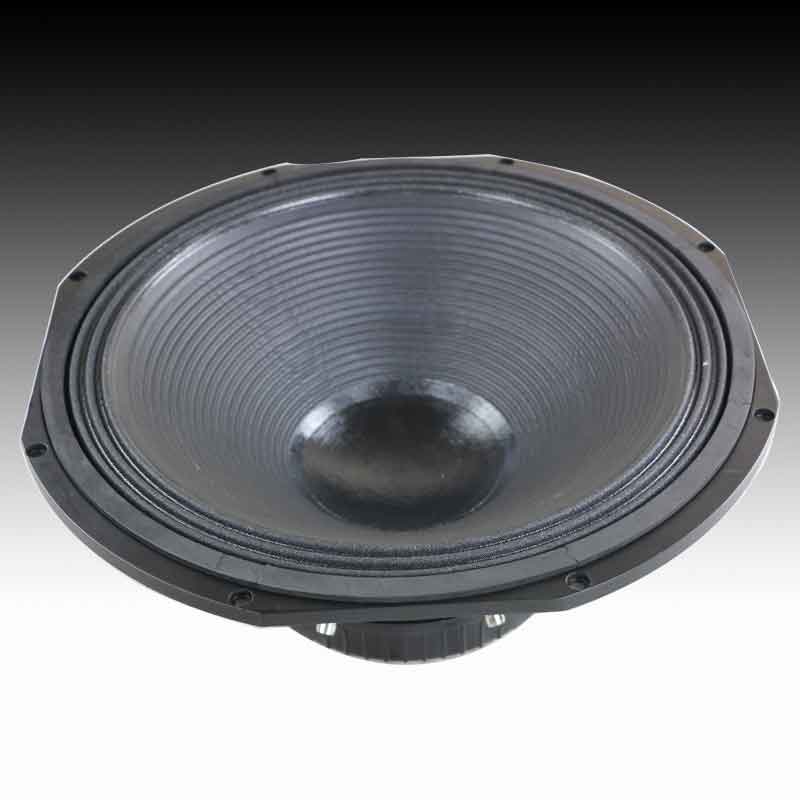

General  Specification 15XB 18XB
Norminal Diameter : 393mm/15inch 460mm/18inch
Power Rating : 500W 800W
Norminal Impedance : 8Ohm 8Ohm
Sensitivity : 97dB 98dB
Frequency Range : 35Hz-2kHz 35Hz-2kHz
Chassis Type: Aluminium Aluminium
Magnet Type: Ferrite Magnet Ferrite Magnet
Magnet Weight : 220x110x25mm/125OZ 220x110x25mm/125OZ
Voice Coil ; 4"/99.2mm 4"/99.2mm
Coil Material SV,Inside-out SV,Inside-out
Former Material : Glass Fiber Glass Fiber
Voicecoil Winding Width: 21mm 25mm
Cone/Surround Material : Paper/Cloth Paper/Cloth
Suspension : Double Spider Double Spider
X-mas: ±6.0mm ±8.0mm
N/G  Weight 13.5/14.5kg 14.4/15.4kg
Dimension WxDxH 44x44x25cm 51x51x27cm
