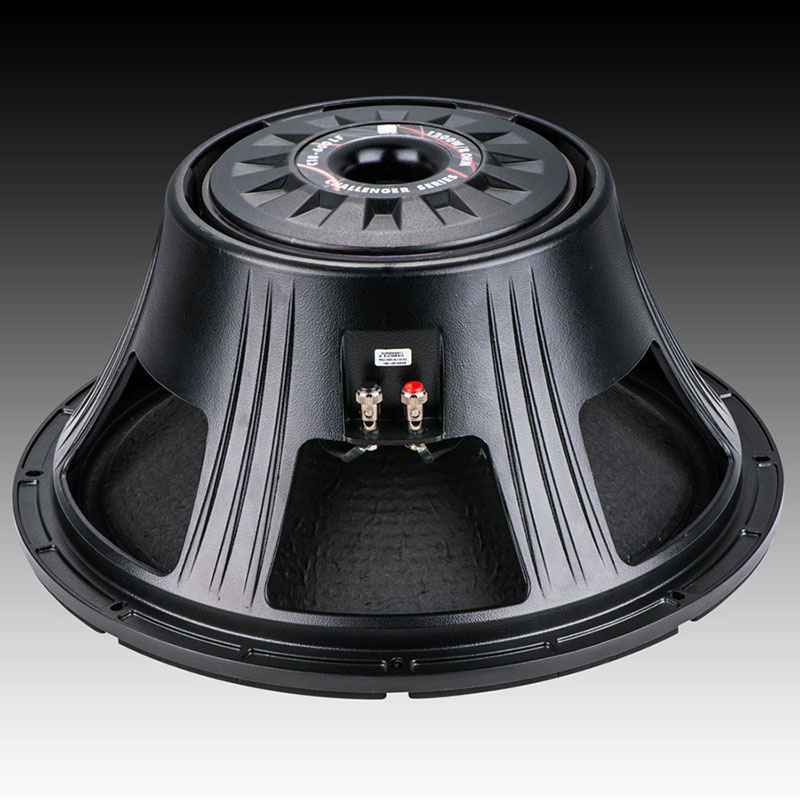

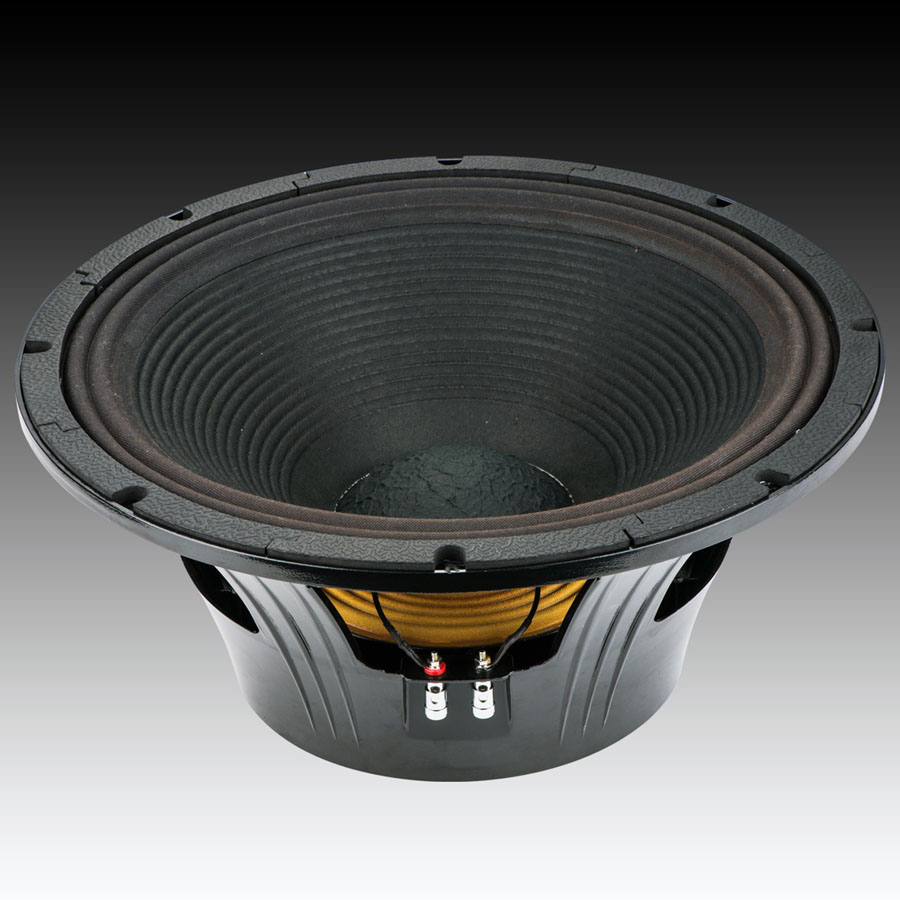

General  Specification C15600EL
Norminal Diameter : 386mm/15inch
Power Rating : 600W
Norminal Impedance : 8Ohm
Sensitivity : 96dB
Frequency Range : 55Hz-3kHz
Chassis Type: Aluminium
Magnet Type: Ferrite Magnet
Magnet Weight : 200x110x25mm/96OZ
Voice Coil ; 4"/99.2mm
Coil Material SV, Inside -out
Former Material : Glass Fiber
Voicecoil Winding Width: 21mm
Cone/Surround Material : Paper/Cloth
Suspension : Double Spider
X-mas: ±5.0mm
N/G  Weight 12/13 kg

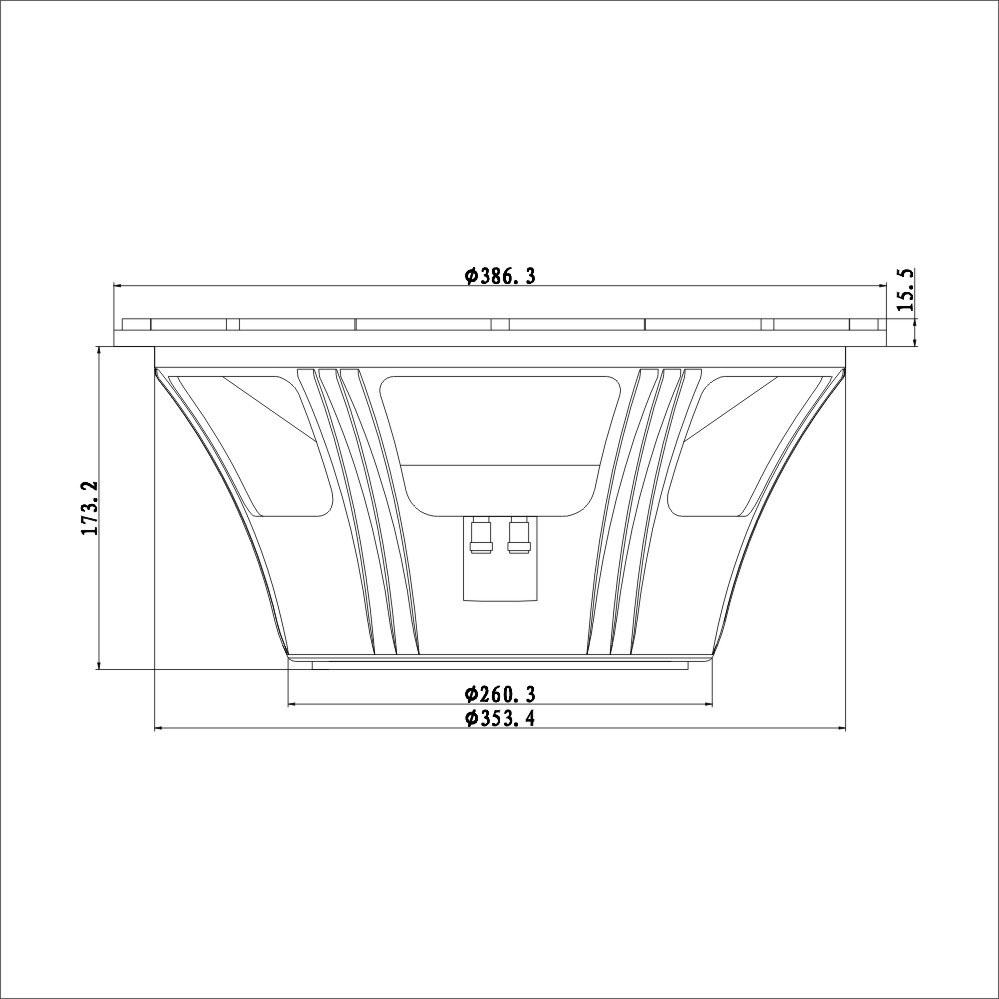

Dimension WxDxH 44x44x25cm
Thiele & Small Parameters
Re 5.3Ohm
Fs 55Hz
Mms 126g
Mmd 112
Qms 7.4
Qes 0.43
Qts 0.39
Vas 81 lt
BL 22.5 Tm
SD 0.09m2
Features
1200 Watts  Max Power Handling
Ferrite Magnet
Single Spider Suspension
Die Cast Aluminium Chassis
