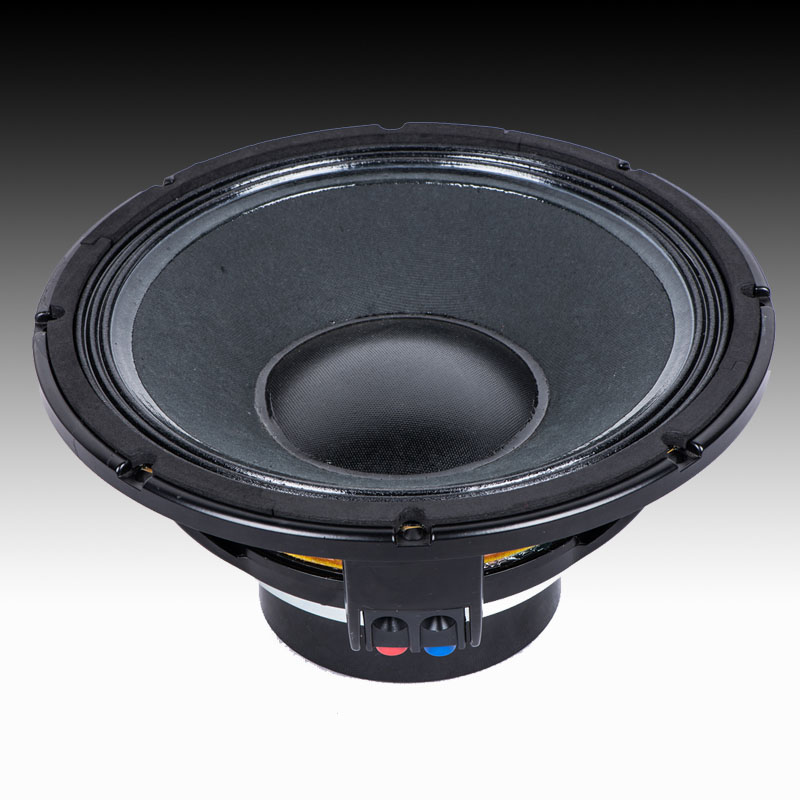

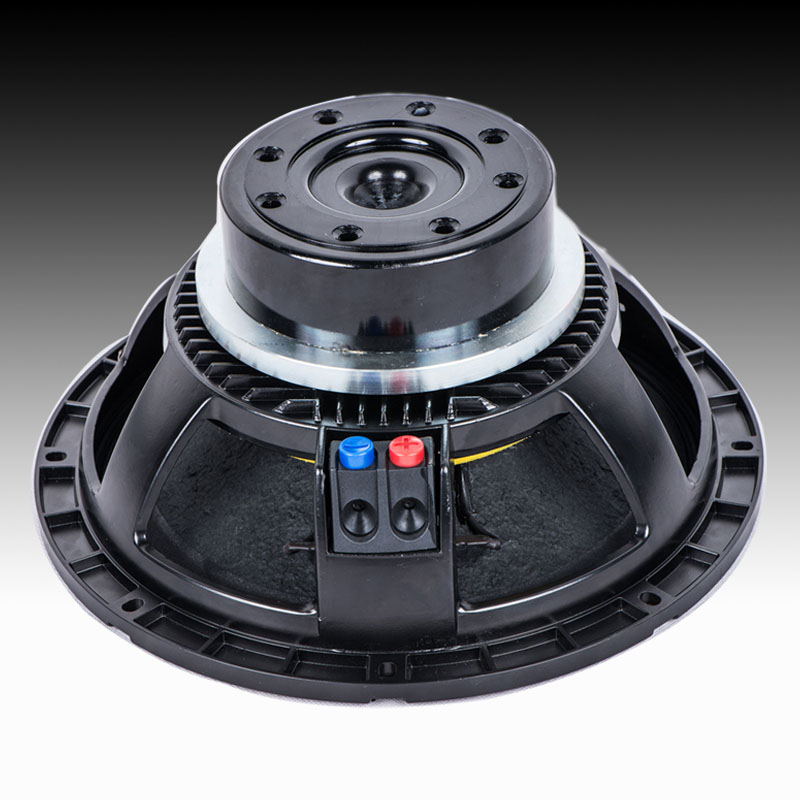

General  Specification LF12N401
Norminal Diameter :    12 inch
Power Rating :        500 W
Norminal Impedance :  8Ohm
Sensitivity :      95dB
Frequency Range :    50HZ-2.5KHZ
Chassis Type: Aluminium
Magnet Type:    Neodymium
Magnet Weight :     90x14mm
Voice Coil ;    4"/99.2mm
Coil Material    SV,Inside-out.
Former Material :    Glass Fiber
Voicecoil Winding Width:    21mm
Cone/Surround Material :     Paper/Cloth
Suspension :   Double Spider
X-mas:     8mm
N/G  Weight  7/8kg
Dimension WxDxH 37x37x22cm
Thiele & Small Parameters
Re  7.2 ohm
Fs 60HZ
Mms 97.9g
Mmd 100g
Qms 3
Qes 0.34
Qts 0.3
Vas 31.1
BL 28.1
SD 56.4
Features
1000 Watts  Max Power Handling
Neodymium Magnet
Double Spider Suspension
Die Cast Aluminium Chassis
