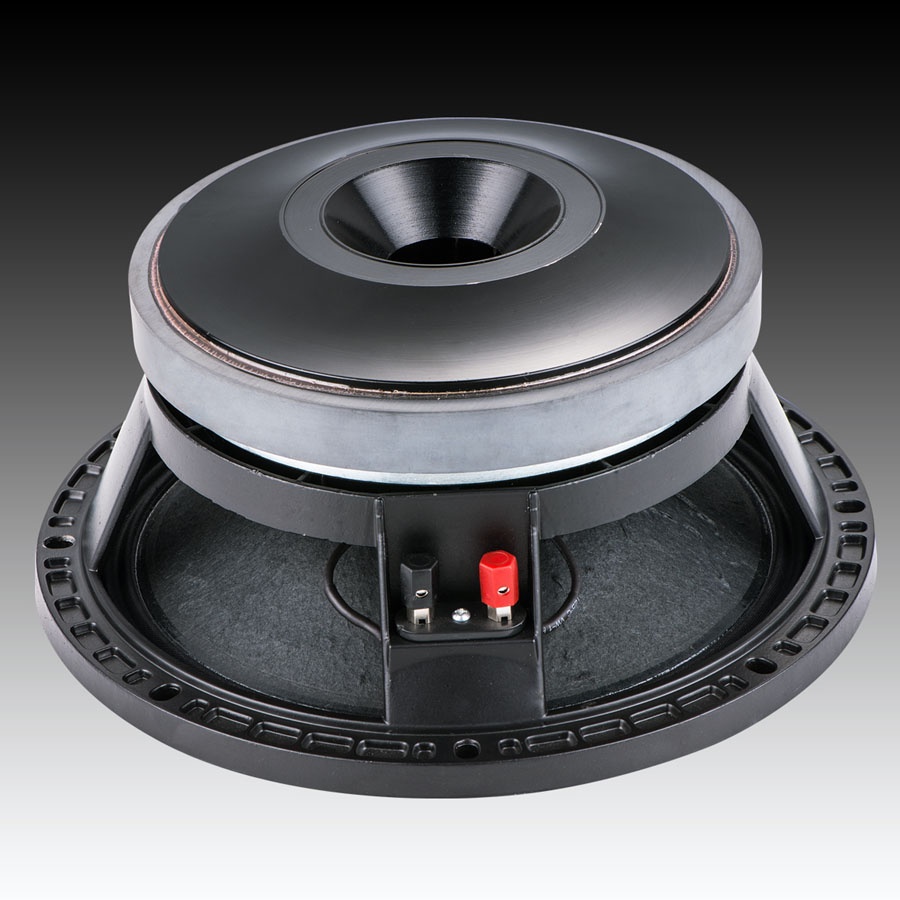

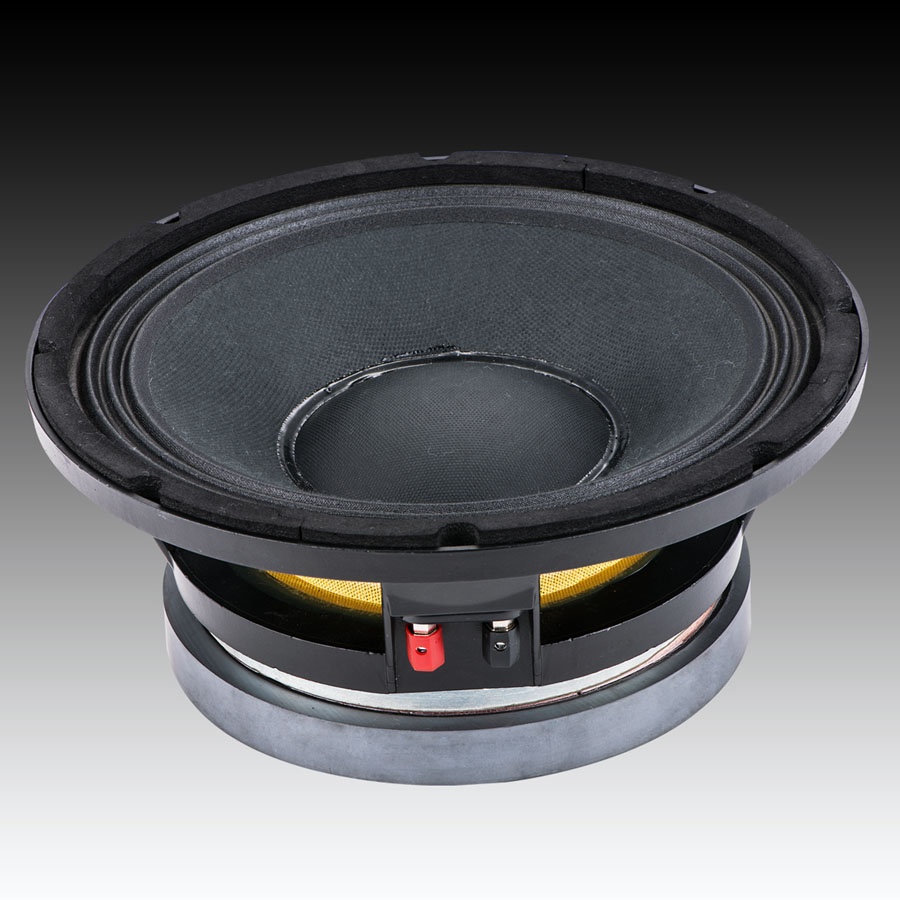

General  Specification L10/750YK-B

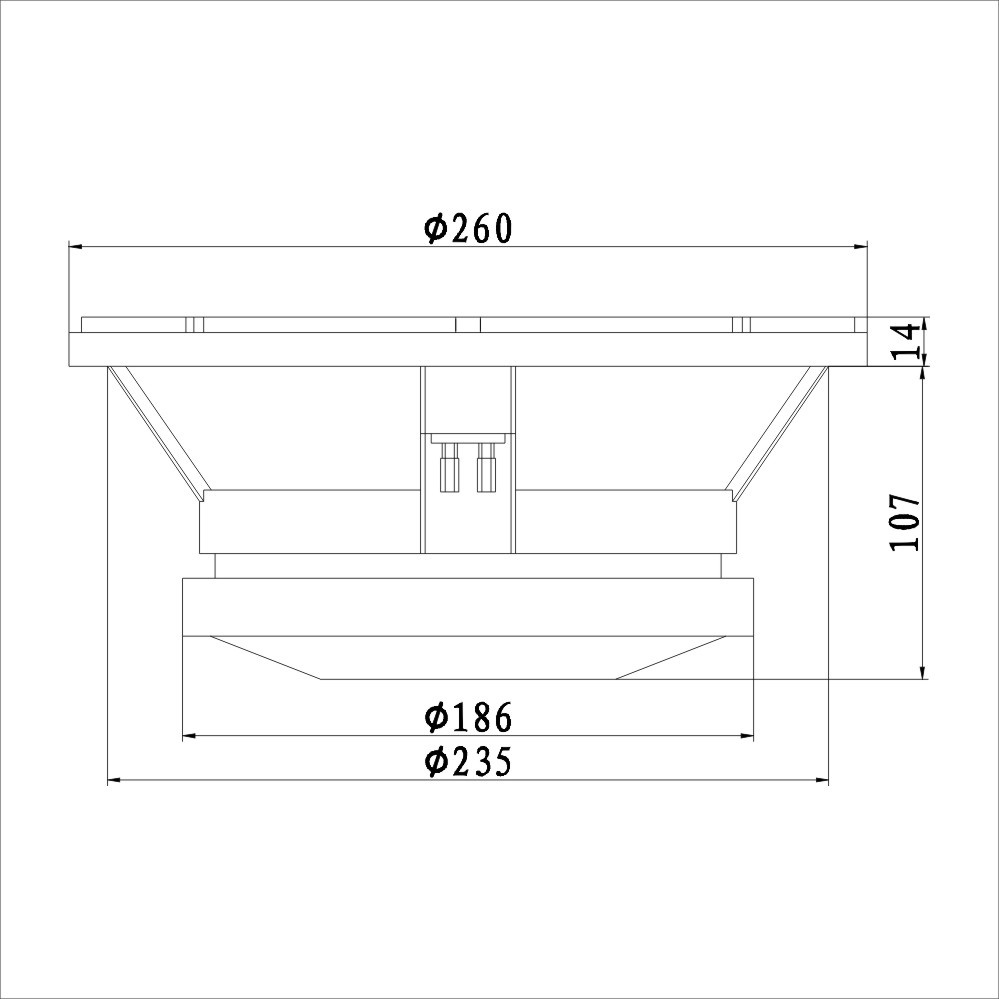

Norminal Diameter :    260mm/10inch
Power Rating :        300W
Norminal Impedance :  8Ohm
Sensitivity :      98dB
Frequency Range :    70Hz-4kHz
Chassis Type: Aluminium
Magnet Type:    Ferrite Magnet
Magnet Weight :     190x90x20mm/78OZ
Voice Coil ;    3"/75.8mm
Coil Material    CCAW,Singel Side
Former Material :    Glass Fiber
Voicecoil Winding Width:    16mm
Cone/Surround Material :     Paper/Cloth
Suspension :   Single Spider
X-mas:     ±3.0mm
N/G  Weight  6.2/7.2 kg
Dimension WxDxH 27x27x16cm
Thiele & Small Parameters
Re  5.3Ohm
Fs 70Hz
Mms 36 g
Mmd 26
Qms 4.2
Qes 0.29
Qts 0.27
Vas 26 lt
BL 17.5 Tm
SD 0.035 m2
Features
600 Watts  Max Power Handling
Ferrite Magnet
Single Spider Suspension
Die Cast Aluminium Chassis
