General  Specification L12G301-B

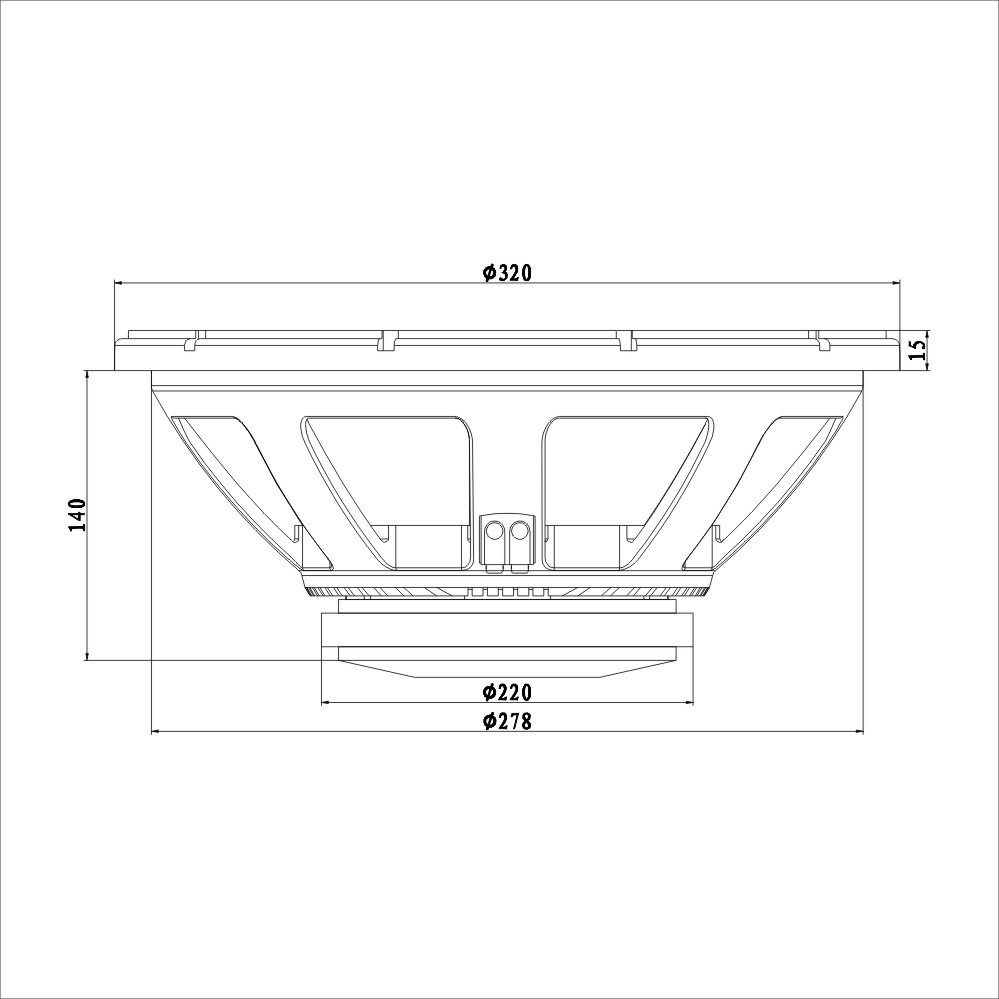

Norminal Diameter :    320mm/12inch
Power Rating :        400W
Norminal Impedance :  8Ohm
Sensitivity :      97dB
Frequency Range :    50Hz-3.5kHz
Chassis Type: Aluminium
Magnet Type:    Ferrite Magnet
Magnet Weight :     190x90x20mm/78OZ
Voice Coil ;    3"/75.8mm
Coil Material    CCAW,Singel Side
Former Material :    Glass Fiber
Voicecoil Winding Width:    16mm
Cone/Surround Material :     Paper/Cloth
Suspension :   Single Spider
X-mas:     ±3.0mm
N/G  Weight  6.5/7.5kg
Dimension WxDxH 37x37x22cm
Thiele & Small Parameters
Re  5.3Ohm
Fs 59Hz
Mms 66 g
Mmd 56
Qms 11
Qes 0.39
Qts 0.37
Vas 45 lt
BL 19.5 Tm
SD 0.053 m2
Features
800 Watts  Max Power Handling
Ferrite Magnet
Single Spider Suspension
Die Cast Aluminium Chassis
