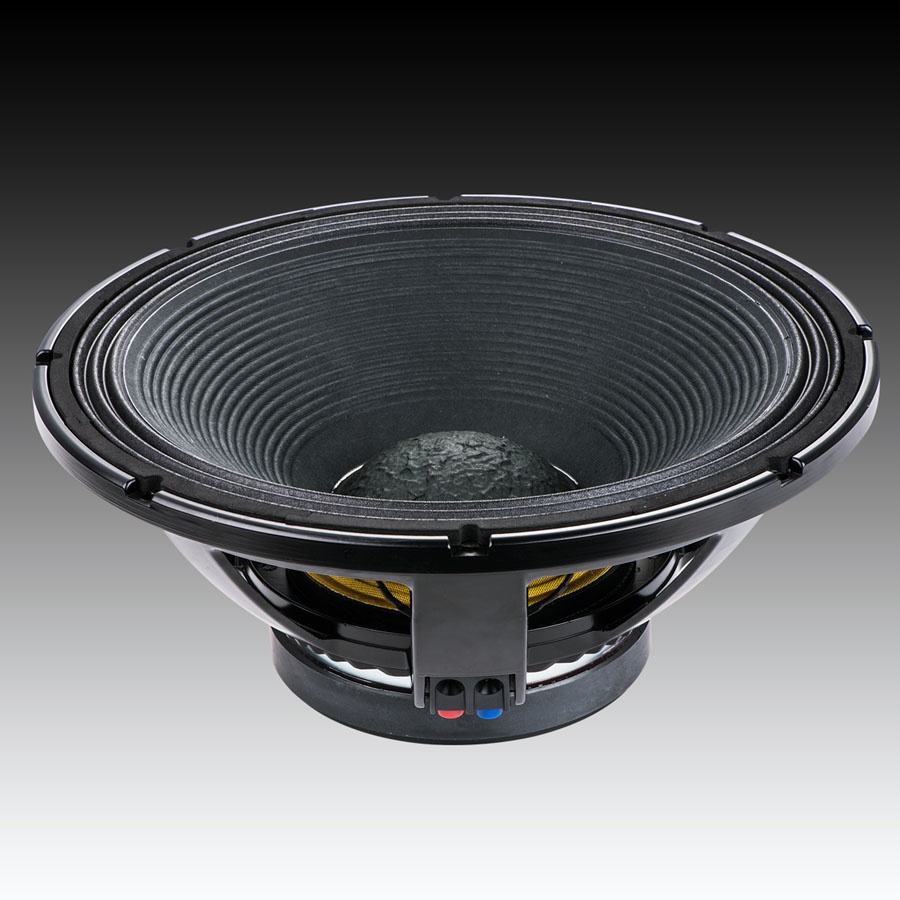

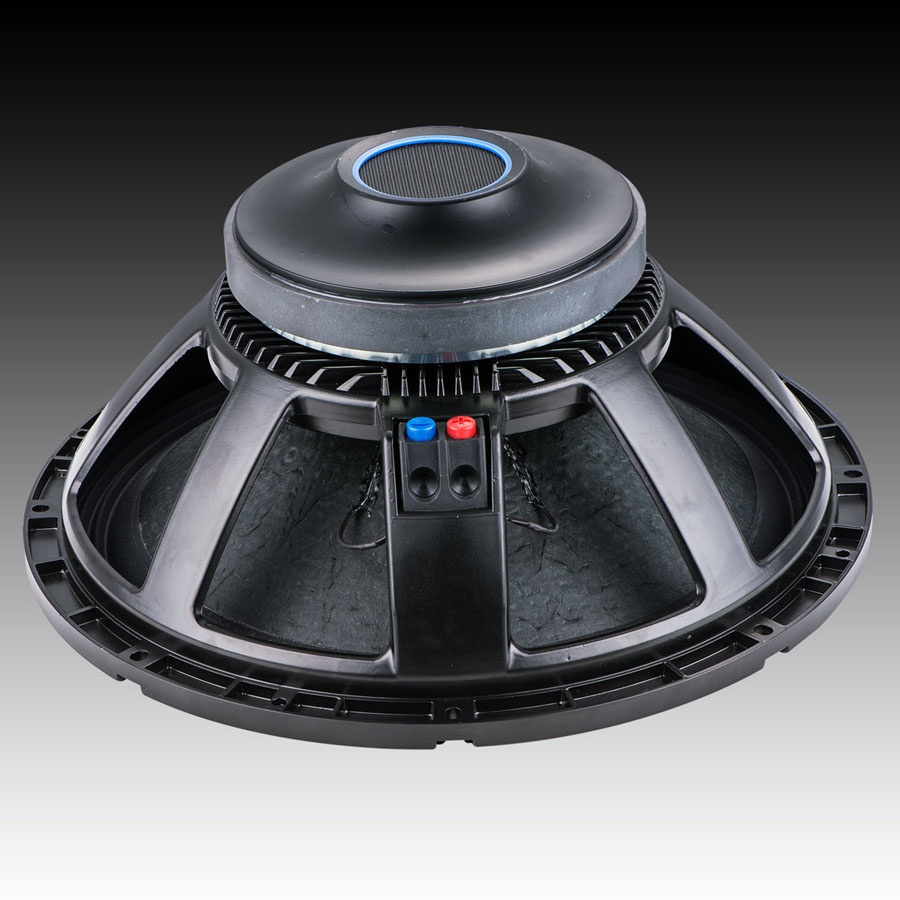

General  Specification LF18G400-B

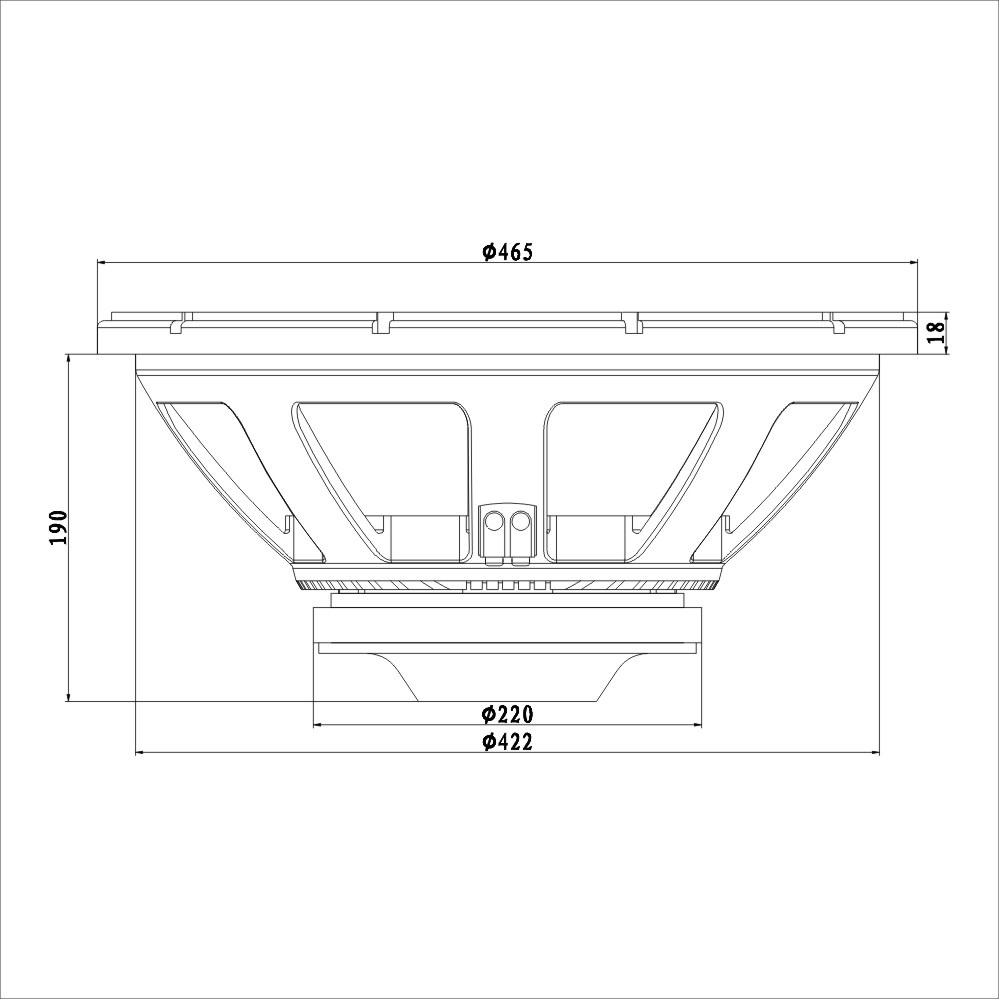

Norminal Diameter :    465mm/18inch
Power Rating :        1000W
Norminal Impedance :  8Ohm
Sensitivity :      97.5dB
Frequency Range :    33Hz-2kHz
Chassis Type: Aluminium
Magnet Type:    Ferrite Magnet
Magnet Weight :     220x110x25mm/125OZ
Voice Coil ;    4"/99.2mm
Coil Material    SV,Inside-out
Former Material :    Glass Fiber
Voicecoil Winding Width:    25mm
Cone/Surround Material :     Paper/Cloth
Suspension :   Double Spider
X-mas:     ±6.0mm
N/G  Weight  12.8/13.8kg
Dimension WxDxH 51x51x27cm
Thiele & Small Parameters
Re  5.3Ohm
Fs 36Hz
Mms 192g
Mmd 178.8
Qms 6.5
Qes 0.32
Qts 0.29
Vas 340 lt
BL 25 Tm
SD 0.122m2
Features
2000 Watts  Max Power Handling
Ferrite Magnet
Double Spider Suspension
Die Cast Aluminium Chassis
