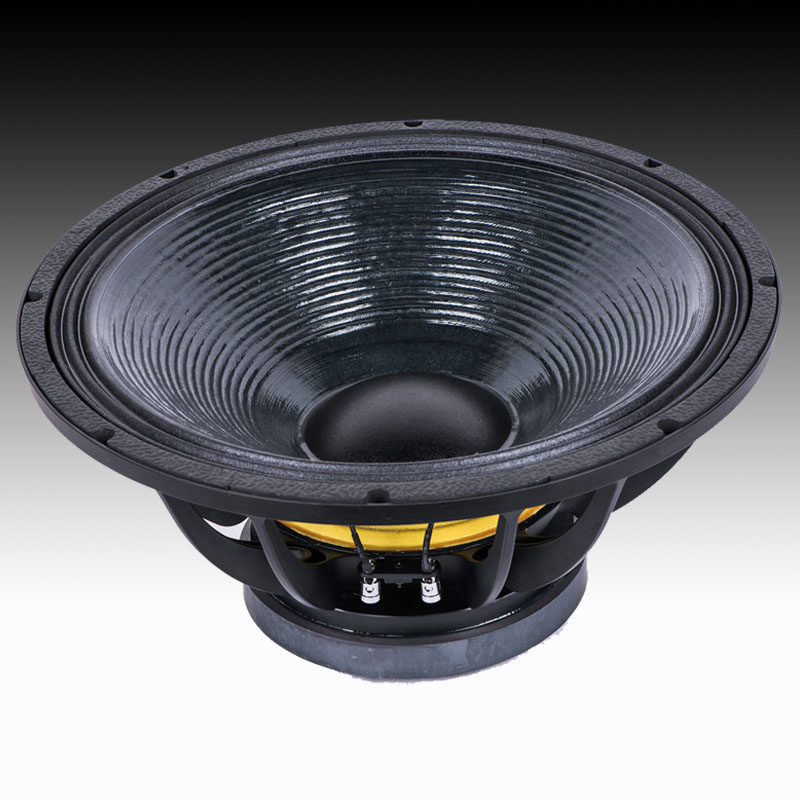

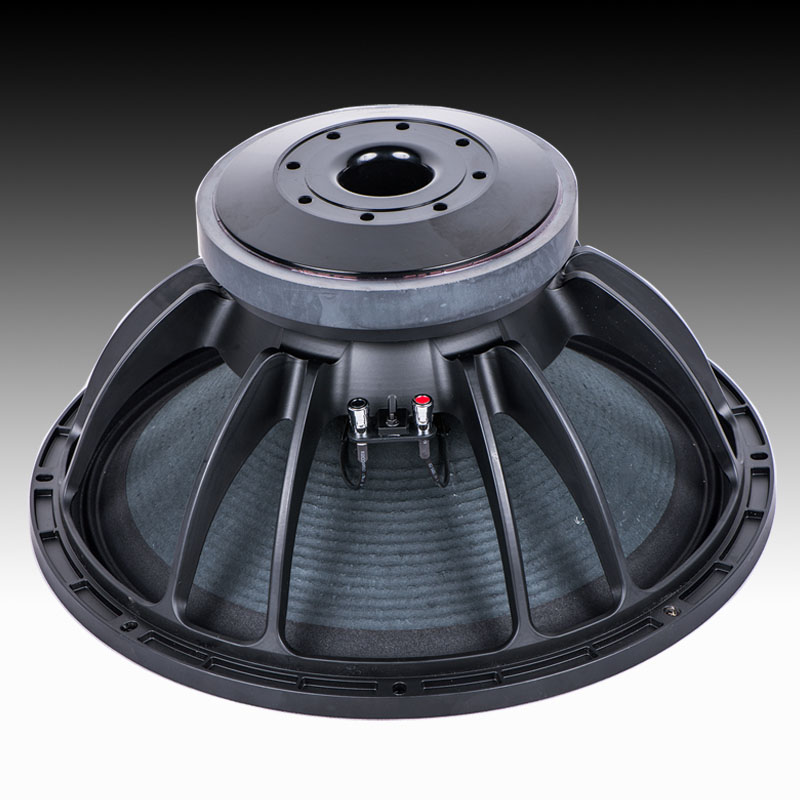

General  Specification 15TBW100 18TBW100
Norminal Diameter :    393mm/15inch 460mm/18inch
Power Rating :        600W 1000W
Norminal Impedance :  8Ohm 8Ohm
Sensitivity :      97dB 97dB
Frequency Range :    35Hz-2kHz 35Hz-1.5kHz
Chassis Type: Aluminium Aluminium
Magnet Type:    Ferrite Magnet Ferrite Magnet
Magnet Weight :     220x110x25mm/125OZ 220x110x25mm/125OZ
Voice Coil ;    4"/99.2mm 4"/99.2mm
Coil Material    SV,Inside-out SV,Inside-out
Former Material :    Glass Fiber Glass Fiber
Voicecoil Winding Width:    21mm 25mm
Cone/Surround Material :     Paper/Cloth Paper/Cloth
Suspension :   Double Spider Double Spider
X-mas:     ±6.0mm ±8.0mm
N/G  Weight  13/15 kg 14/16 kg
Dimension WxDxH 44x44x25cm 51x51x27cm
Thiele & Small Parameters
Re  5.3Ohm 5.3Ohm
Fs 35 Hz 35 Hz
Mms 163 g 209 g
Mmd 146 186
Qms 5.2 7.2
Qes 0.37 0.39
Qts 0.34 0.37
Vas 113 lt 212 lt
BL 25.2Tm 25.5 Tm
SD 0.096 m2 0.122 m2
N/G  Weight  13/15kg 14/16kg
Dimension WxDxH 44x44x25cm 51x51x27cm
Features
  1200 Watts  Max Power Handling 2000 Watts  Max Power Handling
  Ferrite Magnet Ferrite Magnet
  Double Spider Suspension Double Spider Suspension
  Die Cast Aluminium Chassis Die Cast Aluminium Chassis
