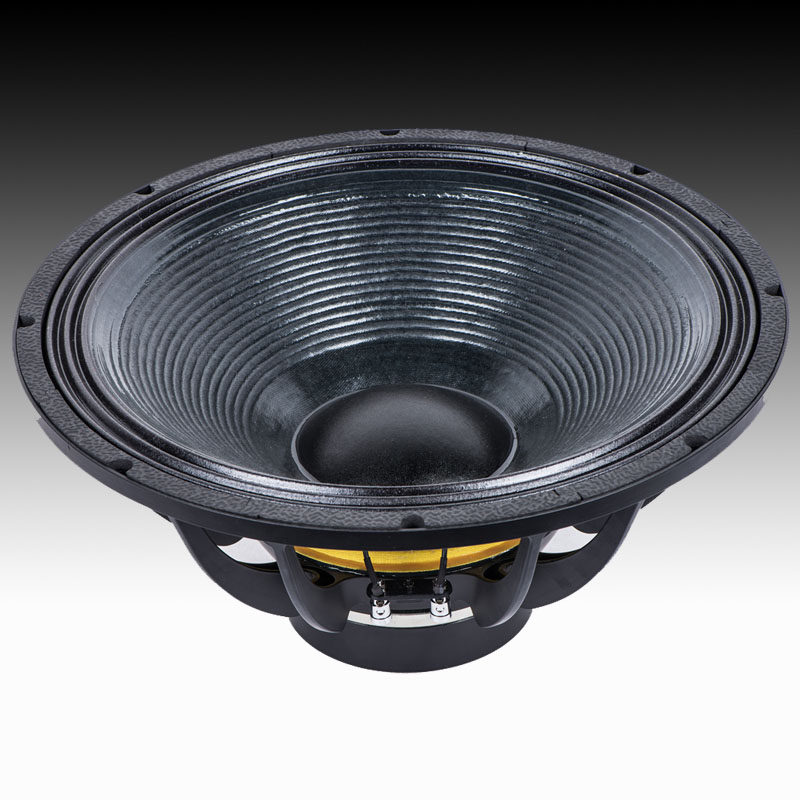

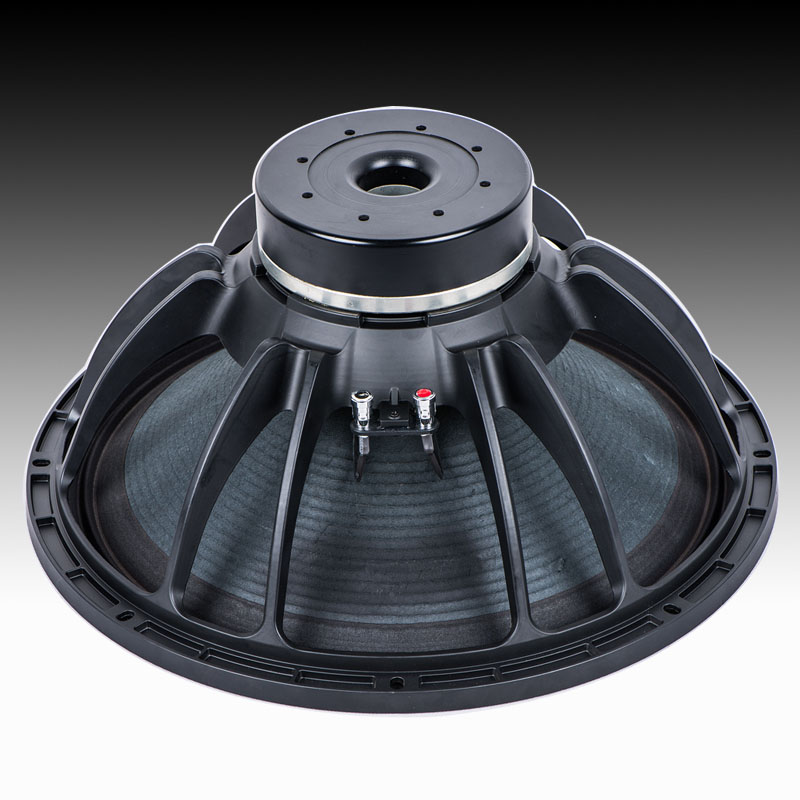

General  Specification 18SW100
Norminal Diameter :    18inch
Power Rating :        1000W
Norminal Impedance :  8Ohm
Sensitivity :      97dB
Frequency Range :    35HZ-1.5KHZ
Chassis Type: Aluminium
Magnet Type:    Neodymium
Magnet Weight :     90x14mm
Voice Coil ;    4"/99.2mm
Coil Material    Copper wire
Former Material :    Glass Fiber
Voicecoil Winding Width:    23mm
Cone/Surround Material :     Paper/Cloth
Suspension :   Double Spider
X-mas:     9mm
N/G  Weight  10/12 kg
Dimension WxDxH 51x51x27cm
Thiele & Small Parameters
Re  6.3 ohm
Fs 40HZ
Mms 239g
Mmd 240g
Qms 4.12
Qes 0.48
Qts 0.43
Vas 131
BL 28.6
SD 123
Features
2000 Watts  Max Power Handling
Neodymium Magnet
Double Spider Suspension
Die Cast Aluminium Chassis


Pervious: 15TBW100 / 18TBW100       Next: 18NW127
