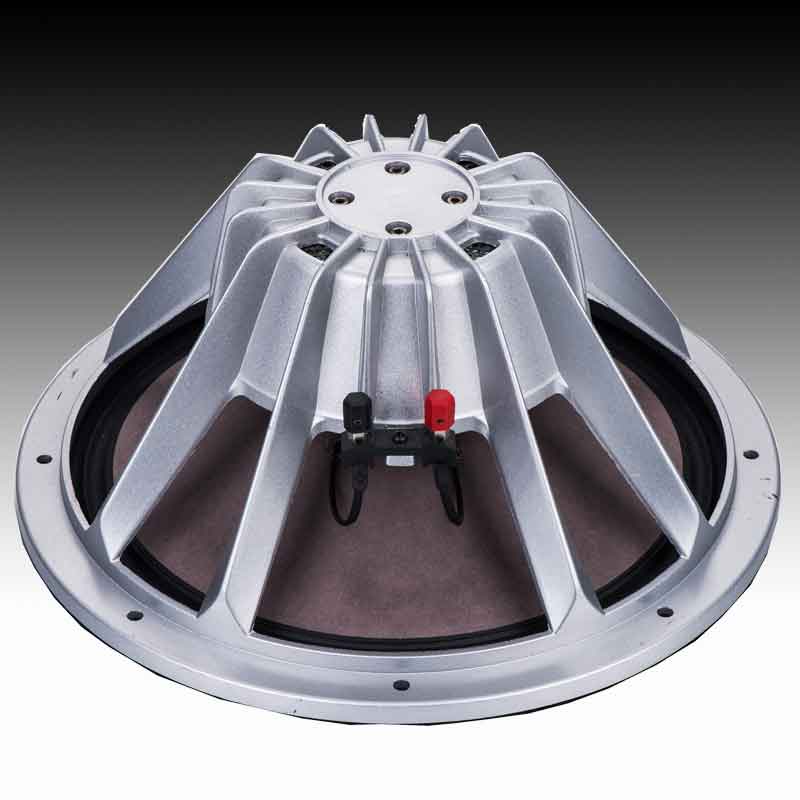

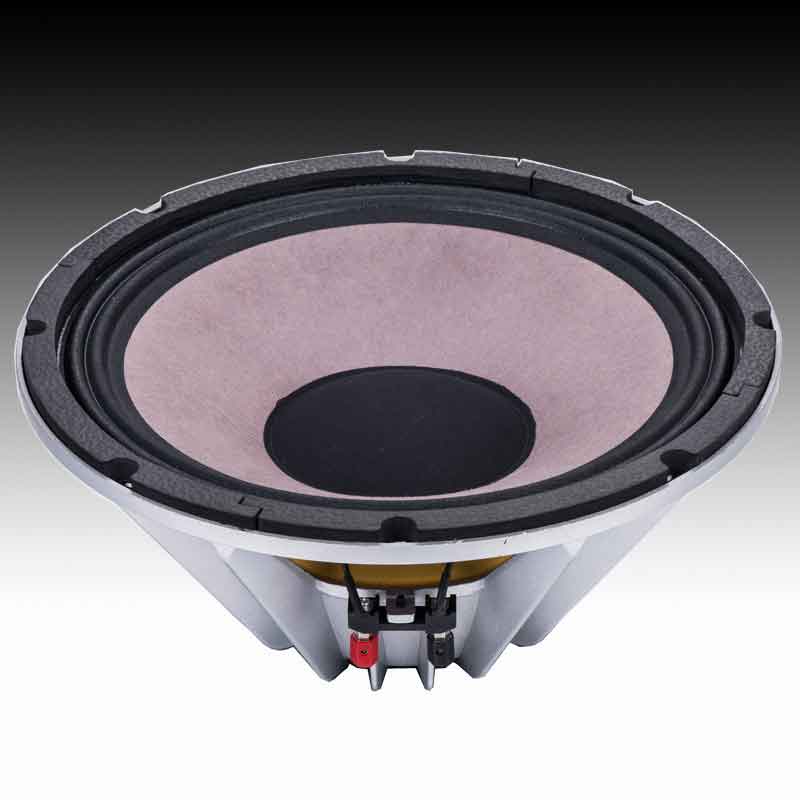

General  Specification 12PHL76
Norminal Diameter : 315mm/12inch
Power Rating : 300W
Norminal Impedance : 8Ohm
Sensitivity : 97dB
Frequency Range : 50Hz-3.5kHz
Chassis Type: Aluminium
Magnet Type: Neodymium
Magnet Weight : 70*12 N40
Voice Coil ; 3"/75mm
Coil Material CCAW
Former Material : Glass Fiber
Cone/Surround Material : Paper/Cloth
Suspension : Double Spider
X-mas: ±6.0mm
N/G  Weight 4.2kg/5.2kg
Dimension WxDxH 35*35*17CM
