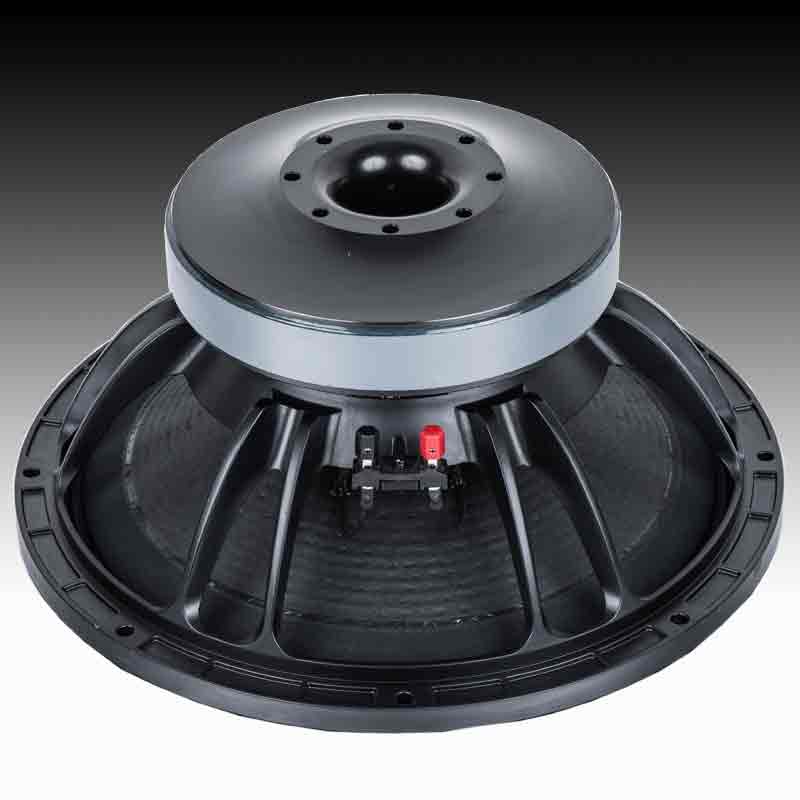

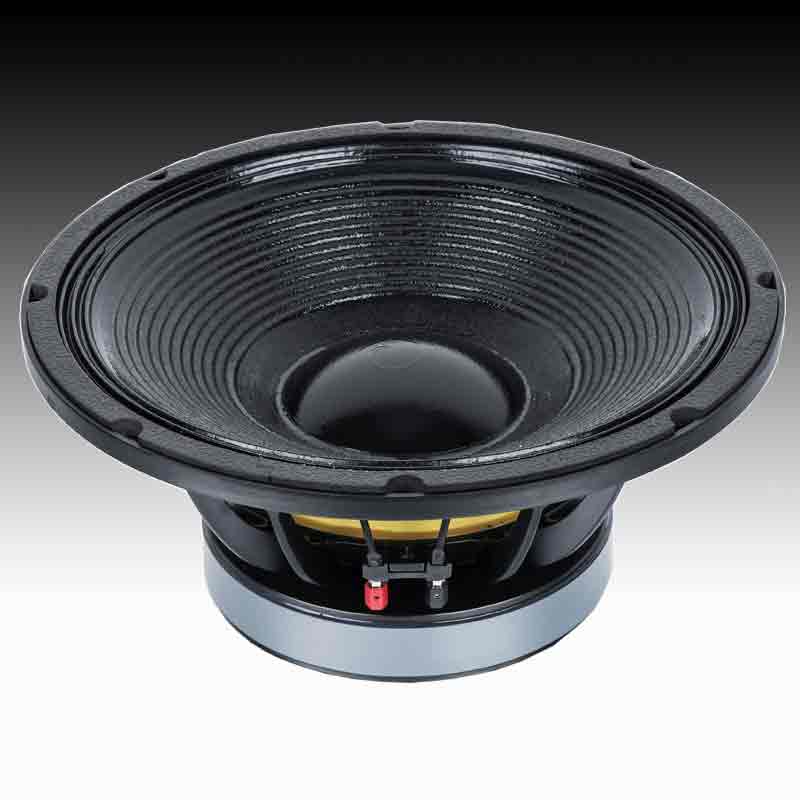

General  Specification 15TBW100
Norminal Diameter : 394mm/15inch
Power Rating : 800 W
Norminal Impedance : 8Ohm
Sensitivity : 97dB
Frequency Range : 35Hz-2kHz
Chassis Type: Aluminium
Magnet Type: Ferrite Magnet
Magnet Weight : 150 OZ  220*110*30mm
Voice Coil ; 4"
Coil Material SV,Inside-out
Voicecoil Winding Width: 18mm
Cone/Surround Material : Paper/Cloth
Suspension : Double Spider
X-mas: ±6.0mm
N/G  Weight 14/15kg
Dimension WxDxH 44x44x25cm
