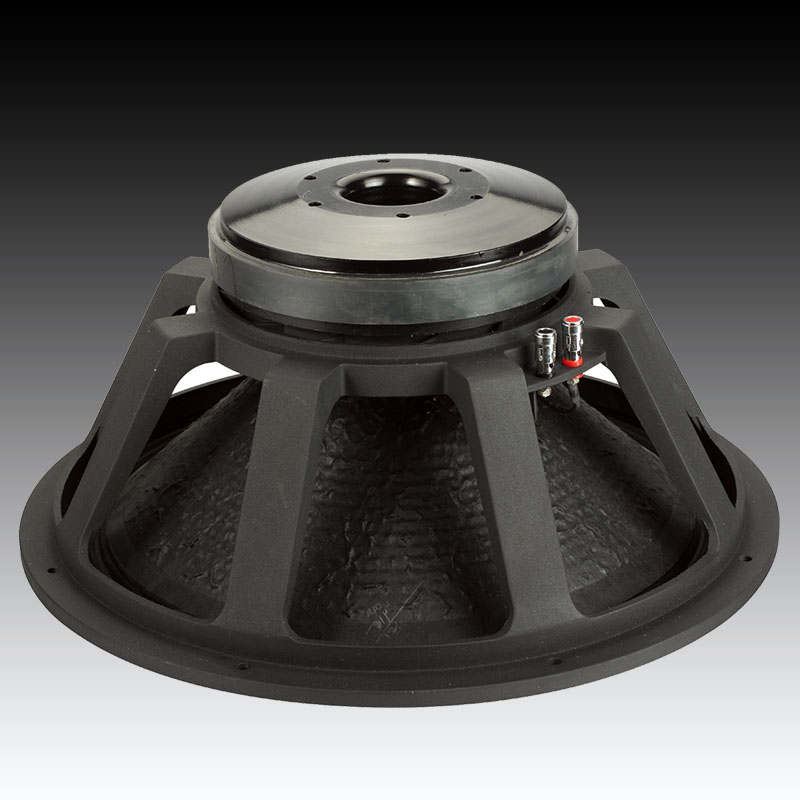

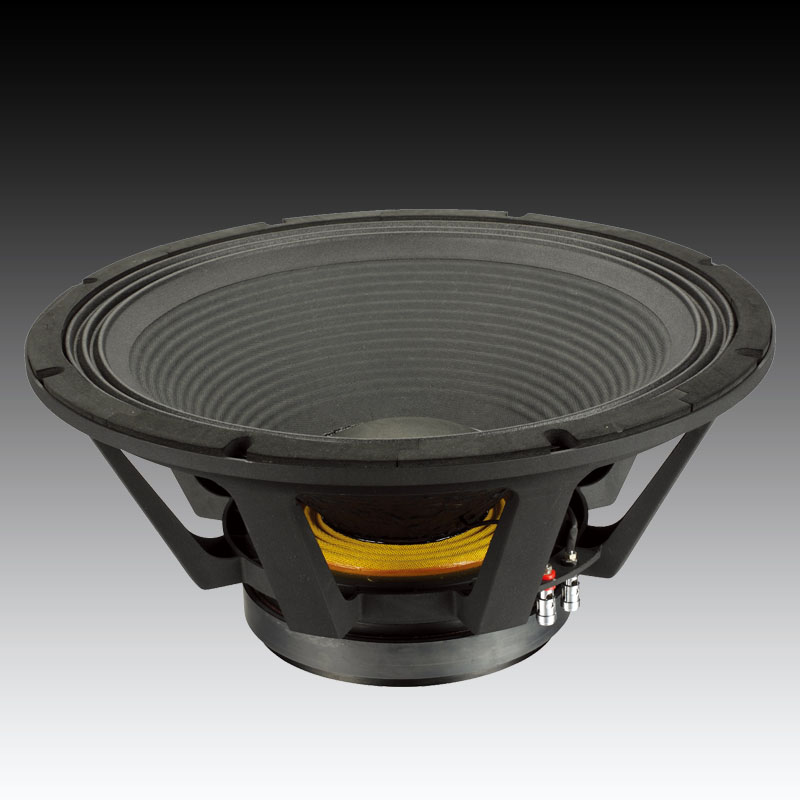

Model 10D50 12D76 15D76
Norminal Diameter 10" 12" 15"
Impedance 8Ohm 8 Ohm 8 Ohm
RMS/MAX Power 250/500W 300/600W 350/700W
Sensitivity 95dB 96dB 97dB
Frequency Range 55Hz-3.5KHz 45Hz-3.5KHz 45Hz-3KHz
Voice Coil 2"  3" 3"
Magnet 40 OZ  134x60x20 60OZ 170x85x20 78OZ 190x90x20



Model 18D100 21D127 24D127
Norminal Diameter 18" 21" 24"
Impedance 8 Ohm 8 Ohm 8 Ohm
RMS/MAX Power 800/1600W 1200/2400W 1300/2600W
Sensitivity 96dB 97dB 98dB
Frequency Range 42Hz-2Khz 42Hz-2Khz 42Hz-2Khz
Voice Coil 4" 5" 5"
Magnet 100OZ 220x110x20 200OZ 280x140x25 200OZ 280x140x25
